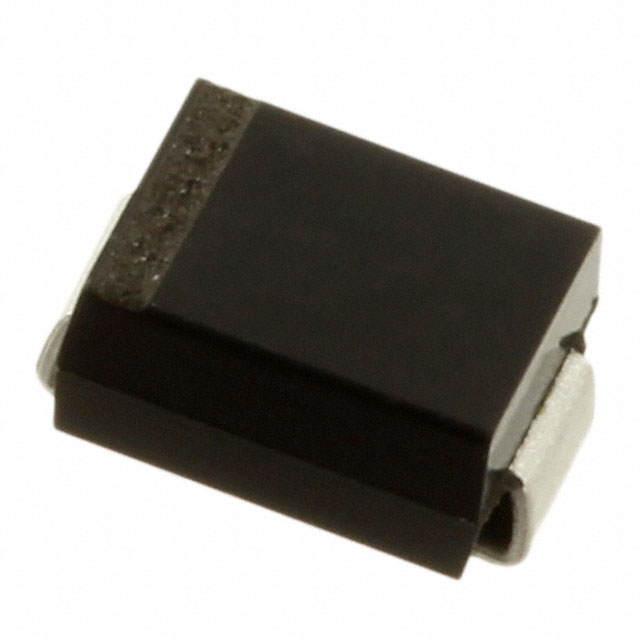

1SMB6.0CA TR13 PBFREE
ActiveCentral Semiconductor Corp
TVS DIODE 6VWM 10.3VC SMB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1SMB6.0CA TR13 PBFREE
ActiveCentral Semiconductor Corp
TVS DIODE 6VWM 10.3VC SMB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1SMB6.0CA TR13 PBFREE |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Current - Peak Pulse (10/1000µs) | 58.3 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | SMB, DO-214AA |
| Power - Peak Pulse | 600 W |
| Power Line Protection | False |
| Supplier Device Package | SMB |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 6.67 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 10.3 V |
| Voltage - Reverse Standoff (Typ) | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 6000 | $ 0.18 | |
| 9000 | $ 0.17 | |||
| 30000 | $ 0.17 | |||
Description
General part information
1SMB6.0CA TR13 PBFREE
10.3V Clamp 58.3A Ipp Tvs Diode Surface Mount SMB
