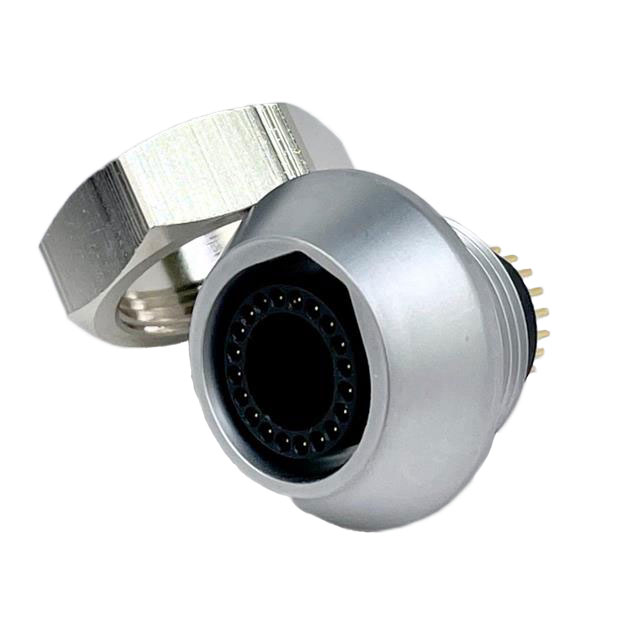

193-A002
ActiveAmphenol Onanon
MAGCONNECT HERO RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
193-A002
ActiveAmphenol Onanon
MAGCONNECT HERO RECEPTACLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 193-A002 |
|---|---|
| Applications | Aerospace, Medical, Military, Commercial |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 3 A |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Insert Material | Thermoplastic Polyester |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 20 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | 0 °C |
| Orientation | 1 |
| Primary Material | Plastic |
| Shell Finish | Chromium over Brass Alloy |
| Shell Material | Brass |
| Voltage Rating | 1500 V, 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 84.62 | |
| 10 | $ 65.84 | |||
| 25 | $ 59.90 | |||
| 50 | $ 57.90 | |||
Description
General part information
193-A002
20 Position Circular Connector Receptacle, Male Pins Solder Cup
