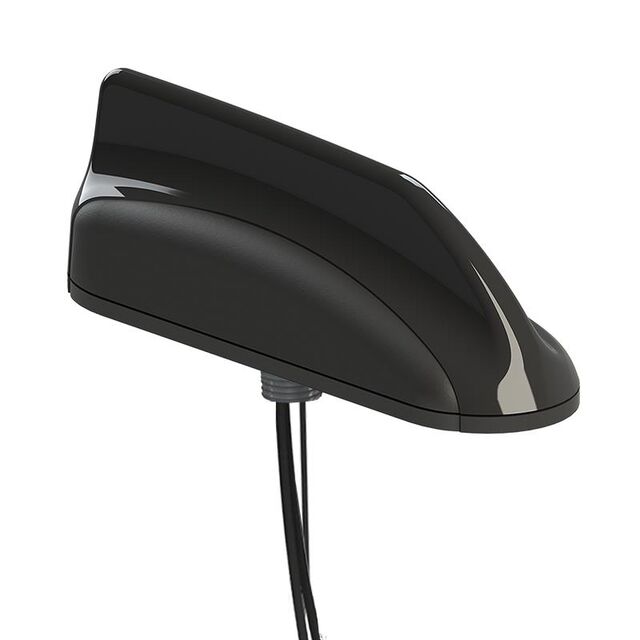

MXFG308-3C3C2C-BLK-180
ActiveMobile Mark Antenna Solutions
3-CABLE 2X5G/LTE GNSS FLEET MGT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MXFG308-3C3C2C-BLK-180 |
|---|---|
| Antenna Type | Dome |
| Applications | GNSS, QZSS, Wi-Fi, GLONASS, Beidou, Galileo, 4G/5G, GPS, LTE |
| Features | Cable - 4.572m, LNA |
| Frequency (Center/Band) | 2.2 GHz, 1.502 GHz, 658.5 MHz, 1.575 GHz, 3.8 GHz, 1.561 GHz, 5.45 GHz, 830 MHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 2.7 GHz, 6 GHz, 960 MHz, 4.2 GHz, 700 MHz |
| Frequency Range [Min] | 1.71 GHz, 700 MHz, 3.4 GHz, 4.9 GHz, 617 MHz |
| Gain | 4 dBi, 3 dBi, 6 dB, 5 dBi, 1 dBi |
| Height (Max) [Max] | 2.5 in |
| Height (Max) [Max] | 63.5 mm |
| Ingress Protection | IP67 |
| Mounting Type | Through Hole |
| Number of Bands | 8 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | Cellular, Navigation |
| VSWR | 2.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 203.15 | |
Description
General part information
MXFG308-3C3C2C-BLK-180
RF ANTENNA 4G/5G, BeiDou, Galileo, GLONASS, GNSS, GPS, LTE, QZSS, Wi-Fi Dome SMA Male Through Hole
