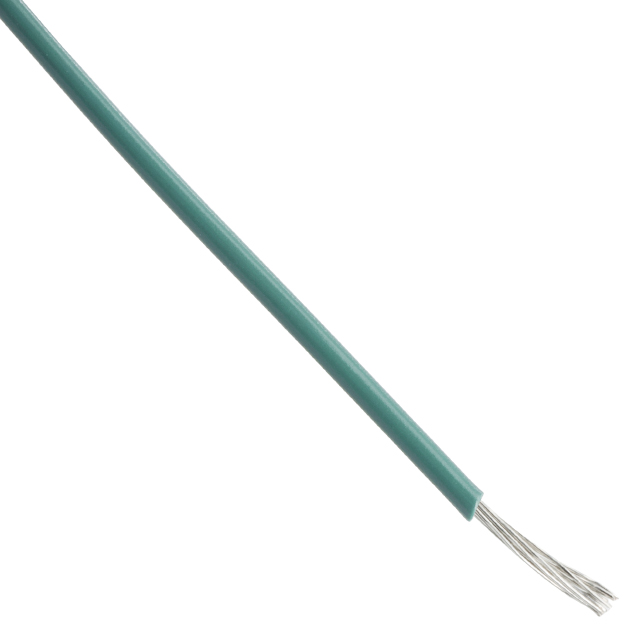

2841/7 GR001 - HOOK-UP STRANDED GREEN

2841/7 GR001

Active
ALPHA WIRE

WIRE, STRANDED, HOOK UP, PTFE, GREEN, 30 AWG, 0.057 MM², 1000 FT

Deep-Dive with AI

Search across all available documentation for this part.

2841/7 GR001 - HOOK-UP STRANDED GREEN

2841/7 GR001

Active
ALPHA WIRE

WIRE, STRANDED, HOOK UP, PTFE, GREEN, 30 AWG, 0.057 MM², 1000 FT

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification2841/7 GR001
Cable TypeHook-Up
Conductor MaterialCopper, Silver Coated
Conductor Strand [custom]38 AWG
Conductor Strand [custom]7
Jacket (Insulation) Diameter [diameter]0.024 in
Jacket (Insulation) Diameter [diameter]0.61 mm
Jacket (Insulation) MaterialPolytetrafluoroethylene (PTFE)
Jacket (Insulation) Thickness0.006 in
Jacket (Insulation) Thickness0.15 mm
Jacket ColorGreen
Length1000 ft
Length304.8 m
Operating Temperature [Max]200 °C
Operating Temperature [Min]-60 °C
QualificationMIL-W-16878/6 Type ET
Voltage250 V
Wire Gauge30 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeySpool 1$ 743.12
2$ 706.33
3$ 685.51
5$ 659.97
7$ 643.57
10$ 638.06
NewarkSpool of 1000 1$ 711.24

Description

General part information

2841/7 GR001

The broad range of hook-up wire from Alpha Wire helps user find the product exactly suited to their application, whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment. Alpha Wire hook-up wire is available in a variety of insulations to meet users need for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.
