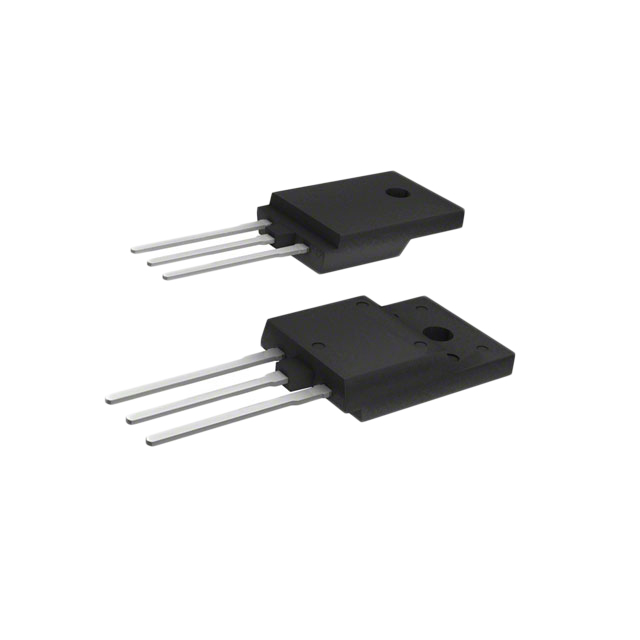

2SB1382
ObsoleteSanken Electric USA Inc.
TRANS PNP DARL 120V 16A TO3PF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2SB1382
ObsoleteSanken Electric USA Inc.
TRANS PNP DARL 120V 16A TO3PF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2SB1382 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 16 A |
| Current - Collector Cutoff (Max) [Max] | 10 µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 2000 hFE |
| Frequency - Transition | 50 MHz |
| Mounting Type | Through Hole |
| Operating Temperature | 150 °C |
| Package / Case | TO-3P-3 Full Pack |
| Power - Max [Max] | 75 W |
| Supplier Device Package | TO-3PF |
| Transistor Type | PNP - Darlington |
| Vce Saturation (Max) @ Ib, Ic | 1.5 V |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 120 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
2SB1382
Bipolar (BJT) Transistor PNP - Darlington 120 V 16 A 50MHz 75 W Through Hole TO-3PF
