6355-0034-01
ActiveEncitech Connectors AB

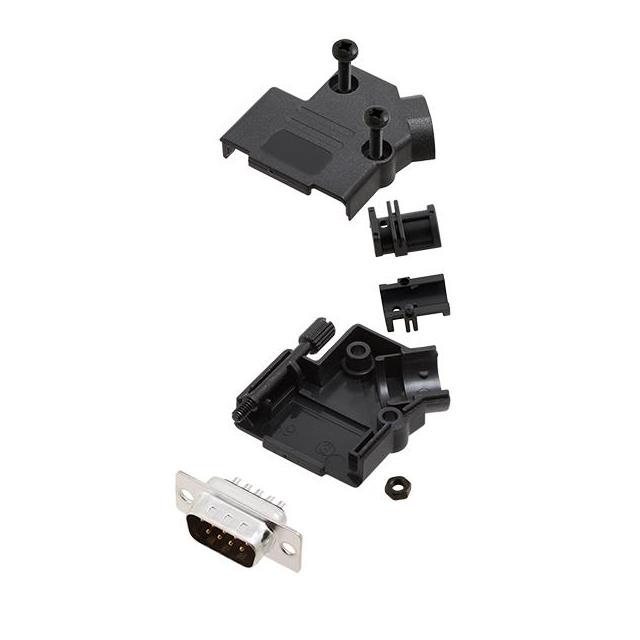

D-SUB BACKSHELL, UNSHIELDED, 45
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6355-0034-01
ActiveEncitech Connectors AB
D-SUB BACKSHELL, UNSHIELDED, 45
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6355-0034-01 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Form | Stamped |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Assembly, Grounding Indents |
| Flange Feature | Cable Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Primary Material | Metal |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.46 | |
| 10 | $ 1.88 | |||
| 25 | $ 1.69 | |||
| 50 | $ 1.56 | |||
| 100 | $ 1.45 | |||
| 250 | $ 1.31 | |||
| 500 | $ 1.22 | |||
| 1000 | $ 1.13 | |||
| 2500 | $ 1.03 | |||
Description
General part information
6355-0034-01
9 Position D-Sub Plug, Male Pins Connector
