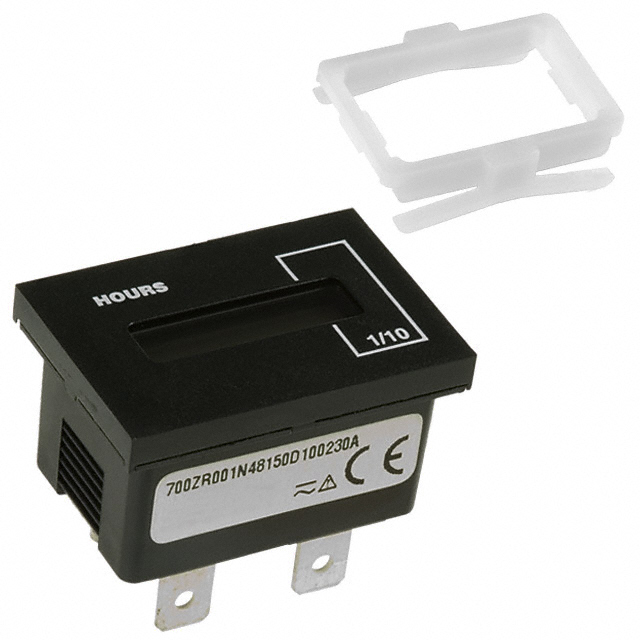

700ZR001N48150D100230A
ObsoleteCurtis Instruments Inc.
COUNTER LCD 6 CHAR 100-230V PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
700ZR001N48150D100230A
ObsoleteCurtis Instruments Inc.
COUNTER LCD 6 CHAR 100-230V PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 700ZR001N48150D100230A |
|---|---|
| Display Characters - Height [z] | 5 mm |
| Display Characters - Height [z] | 0.196 in |
| Display Type | LCD - Black Characters |
| Ingress Protection | IP66 |
| Input Type | Voltage |
| Number of Characters Per Row | 6 |
| Operating Mode | Up |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [x] | 36.8 mm |
| Panel Cutout Dimensions [y] | 24.1 mm |
| Reset | External |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Time Format | 99999.9 hrs |
| Type | Time Counter (Hour Meter) |
| Voltage - Supply [Max] | 150 V, 230 VAC |
| Voltage - Supply [Min] | 100 VAC, 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
700ZR001N48150D100230A
Time Counter (Hour Meter) 100 ~ 230VAC, 48 ~ 150VDC Panel Mount
