P003959
ActiveEmbention

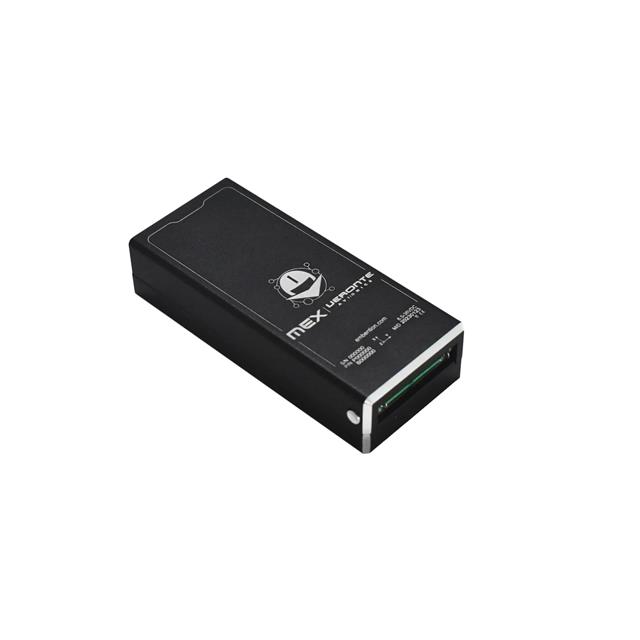

VERONTE AVIONICS: MEX V1.0
Deep-Dive with AI
Search across all available documentation for this part.
P003959
ActiveEmbention
VERONTE AVIONICS: MEX V1.0
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P003959 |
|---|---|
| Axis [x] | X |
| Axis [y] | Y |
| Axis [z] | Z |
| For Measuring [custom] | Direction of Magnetic Field |
| For Measuring [custom] | Strength |
| Interface | 2x RS232, 2x CAN Bus, 1x RS485, 1x I2C |
| Measuring Range [Max] | 11 Gauss |
| Measuring Range [Min] | -11 Gauss |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Type | Digital Magnetometer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 900.00 | |
Description
General part information
P003959
±11 Gauss Compass X, Y, Z 130µGauss
Documents
Technical documentation and resources
No documents available
