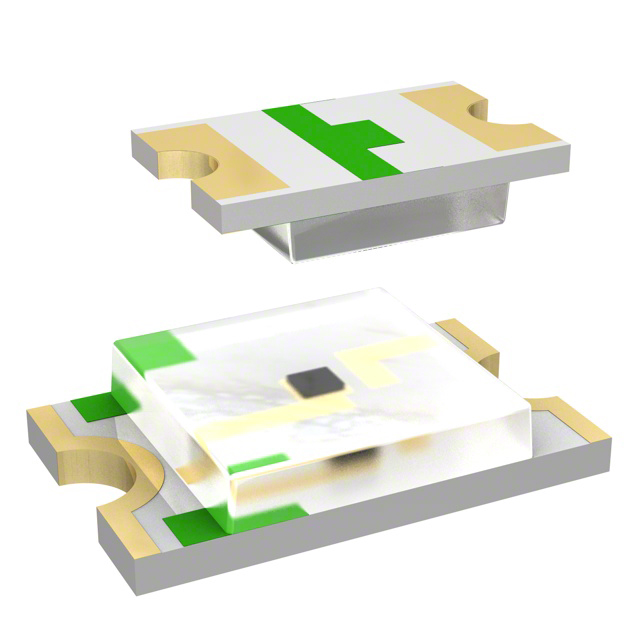

APHCM2012CGCK-F01
ActiveKingbright
LED GREEN CLEAR CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APHCM2012CGCK-F01
ActiveKingbright
LED GREEN CLEAR CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APHCM2012CGCK-F01 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.4 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.3 mm |
| Lens Size [y] | 1.25 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 50 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.34 | |
| 10 | $ 0.27 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.09 | |||
| Digi-Reel® | 1 | $ 0.34 | ||
| 10 | $ 0.27 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.09 | |||
| Tape & Reel (TR) | 2000 | $ 0.08 | ||
| 6000 | $ 0.07 | |||
| 10000 | $ 0.06 | |||
| 50000 | $ 0.05 | |||
| 100000 | $ 0.05 | |||
Description
General part information
APHCM2012CGCK-F01
Green 570nm LED Indication - Discrete 2.1V 0805 (2012 Metric)
