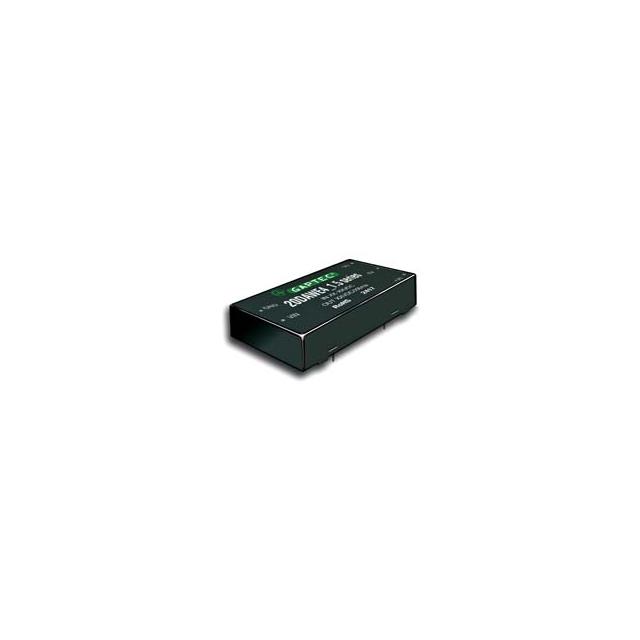

20DAWE4_2405S1.5
ObsoleteGAPTEC Electronic
DC-DC INDUSTRIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
20DAWE4_2405S1.5
ObsoleteGAPTEC Electronic
DC-DC INDUSTRIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 20DAWE4_2405S1.5 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 4 A |
| Efficiency | 88 % |
| Features | Adjustable Output |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.46 in |
| Size / Dimension [z] | 11.8 mm |
| Standard Number | 60950-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
20DAWE4_2405S1.5
Isolated Module DC DC Converter 1 Output 5V 4A 9V - 36V Input
Documents
Technical documentation and resources
