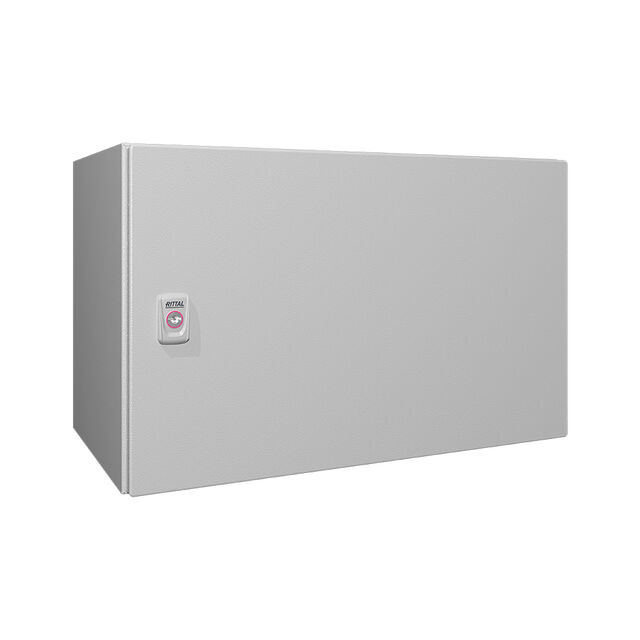

1339000
ActiveRittal
AX COMPACT ENCLOSURE, WHD: 600X3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1339000
ActiveRittal
AX COMPACT ENCLOSURE, WHD: 600X3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1339000 |
|---|---|
| Area (L x W) | 353 in² |
| Area (L x W) | 2277 cm² |
| Color | Light Gray |
| Container Type | Enclosure |
| Design | Hinged Door |
| Height [z] | 13.78 in |
| Height [z] | 350 mm |
| Material | Metal, Steel |
| Ratings | NEMA 4, IP66, NEMA 3R, NEMA 1, NEMA 12 |
| Size / Dimension [x] | 600 mm |
| Size / Dimension [x] | 23.622 in |
| Size / Dimension [y] | 14.961 in |
| Size / Dimension [y] | 380 mm |
| Thickness | 0.059 in |
| Thickness | 1.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 548.13 | |
Description
General part information
1339000
Enclosure Metal, Steel Light Gray Hinged Door 23.622" L x 14.961" W (600.00mm x 380.00mm) X 13.780" (350.00mm)
