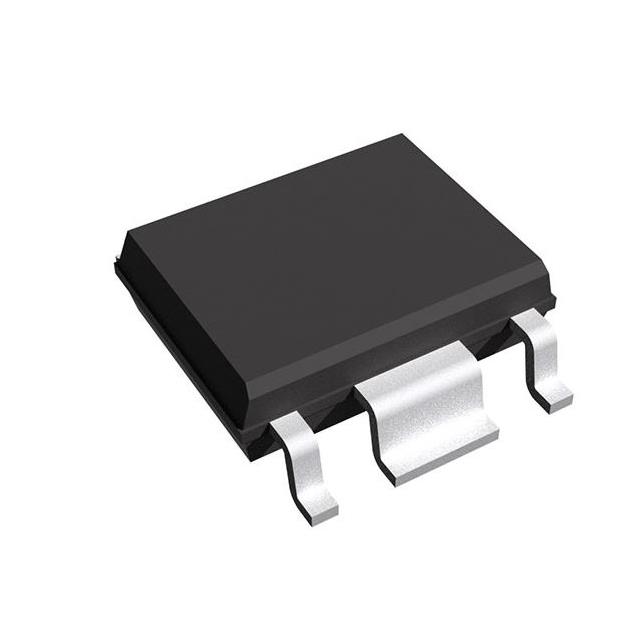

S-19212BA5A-E6T1U
ActiveABLIC Inc.
LINEAR IC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S-19212BA5A-E6T1U
ActiveABLIC Inc.
LINEAR IC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S-19212BA5A-E6T1U |
|---|---|
| Control Features | Enable |
| Current - Output | 250 mA |
| Current - Quiescent (Iq) | 8.5 µA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 0.154 in, 3.9 mm |
| Package / Case [custom] | 6-SOIC Variation |
| Package / Case [custom] | 4 |
| Package / Case [custom] | 2 |
| Protection Features | Over Temperature, Over Current, Short Circuit |
| PSRR | 30 dB |
| Qualification | AEC-Q100 |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Output (Min/Fixed) | 10.5 V |
| Voltage Dropout (Max) [Max] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4000 | $ 1.18 | |
| 8000 | $ 1.14 | |||
Description
General part information
S-19212BA5A-E6T1U
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA 6-HSOP
