A502
ActiveTekscan

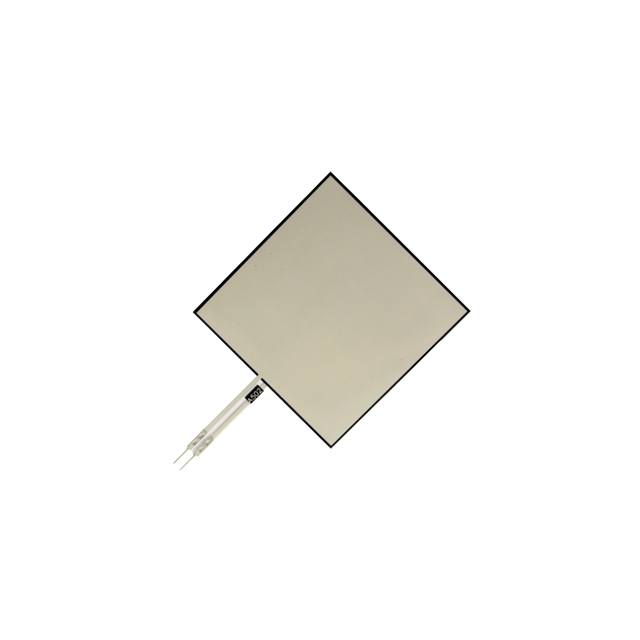

FORCE SENSOR 56X56MM SQUARE. 45K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A502
ActiveTekscan
FORCE SENSOR 56X56MM SQUARE. 45K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A502 |
|---|---|
| Actuator Style/Size | Square |
| Actuator Style/Size [x] | 50.8 mm |
| Actuator Style/Size [y] | 50.8 mm |
| Actuator Type | Flat Membrane |
| Includes | Sensor, Resistor, Capacitors |
| Operating Force | 4535.92 kgf |
| Operating Force | 10000 lbs |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Sensor Type | Force Sensing Resistor |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.03 | |
| 5 | $ 30.38 | |||
| 10 | $ 28.23 | |||
| 25 | $ 25.63 | |||
| 50 | $ 23.82 | |||
| 100 | $ 22.14 | |||
| 500 | $ 19.38 | |||
Description
General part information
A502
Force Sensing Resistor Force Sensor 4535.92kgf (10000lbs)
