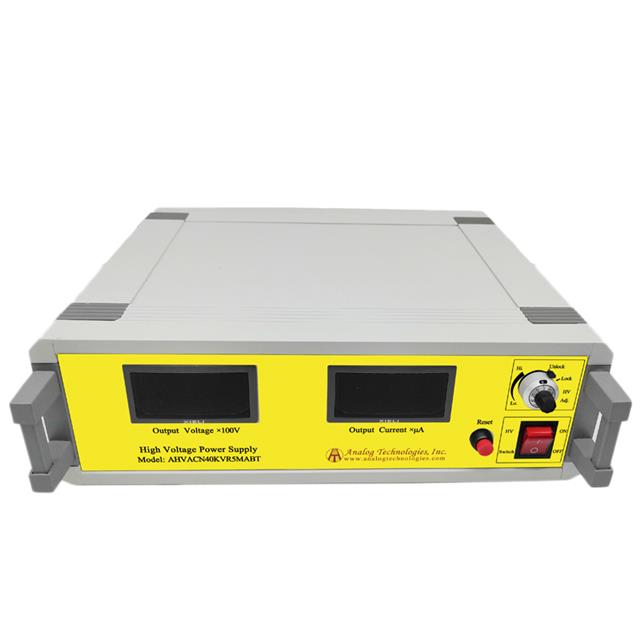

AHVACN40KVR5MABT
ActiveAnalog Technologies, Inc.
AC/DC CONVERTER 40000V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AHVACN40KVR5MABT
ActiveAnalog Technologies, Inc.
AC/DC CONVERTER 40000V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AHVACN40KVR5MABT |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 5 mA |
| Efficiency | 70 % |
| Features | Adjustable Output |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [x] | 13.78 in |
| Size / Dimension [x] | 350 mm |
| Size / Dimension [y] | 11.81 in |
| Size / Dimension [y] | 300 mm |
| Size / Dimension [z] | 125 mm |
| Size / Dimension [z] | 4.92 in |
| Type | Enclosed |
| Voltage - Input [Max] | 230 VAC/DC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 [Max] | 40000 V |
| Voltage - Output 1 [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1102.90 | |
| 10 | $ 1092.90 | |||
| 50 | $ 1082.90 | |||
| 100 | $ 1072.90 | |||
Description
General part information
AHVACN40KVR5MABT
Enclosed AC DC Converters 1 Output 0 ~ 40000V 90 ~ 230 VAC Input
