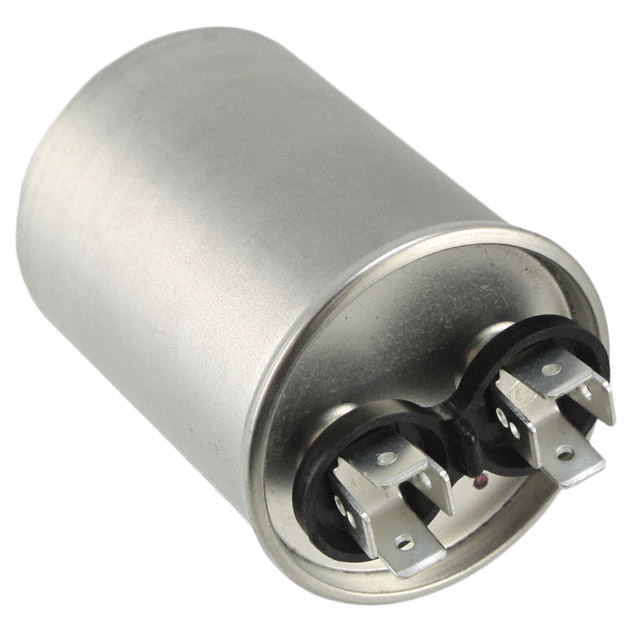

SFP44T5K238B-F
ActiveCornell Dubilier Knowles
CAP FILM 5UF 10% 440VAC RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFP44T5K238B-F
ActiveCornell Dubilier Knowles
CAP FILM 5UF 10% 440VAC RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFP44T5K238B-F |
|---|---|
| Applications | Motor Run |
| Capacitance | 5 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) [Max] | 2.5 in |
| Height - Seated (Max) [Max] | 63.5 mm |
| Lead Spacing | 20.57 mm |
| Lead Spacing | 0.81 in |
| Mounting Type | Requires Holder/Bracket, Chassis Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Size / Dimension | Lip |
| Size / Dimension [diameter] | 1.87 in |
| Size / Dimension [diameter] | 47.5 mm |
| Termination | Disconnect, Quick Connect |
| Tolerance | 10 % |
| Voltage Rating - AC | 440 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 84 | $ 13.30 | |
Description
General part information
SFP44T5K238B-F
5 µF Film Capacitor 440V Polypropylene (PP), Metallized Radial, Can
