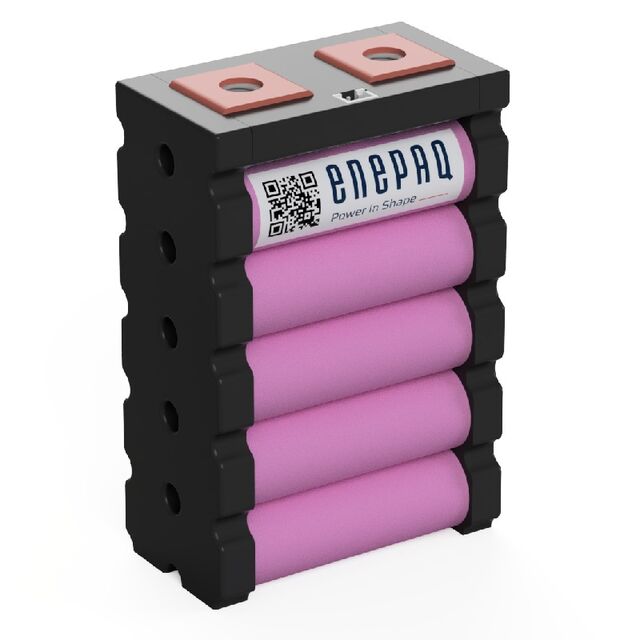

Li2x5p Samsung 30Q Battery Pack
ActiveENEPAQ
SAMSUNG 30Q BATTERY PACK 1S10P
Deep-Dive with AI
Search across all available documentation for this part.
Li2x5p Samsung 30Q Battery Pack
ActiveENEPAQ
SAMSUNG 30Q BATTERY PACK 1S10P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Li2x5p Samsung 30Q Battery Pack |
|---|---|
| Battery Cell Size | 18650 |
| Battery Chemistry | Lithium-Ion |
| Capacity | 30 Ah |
| Number of Cells | 10 |
| Rechargeability | True |
| Size / Dimension [x] | 104.7 mm |
| Size / Dimension [x] | 4.12 " |
| Size / Dimension [y] | 2.74 " |
| Size / Dimension [y] | 69.5 mm |
| Size / Dimension [z] | 38.6 mm |
| Size / Dimension [z] | 0.8 " |
| Structure [custom] | Side to Side |
| Structure [custom] | 10 |
| Structure [custom] | 1 |
| Termination Style | Bolt Connections |
| Voltage - Rated | 3.6 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 160.19 | |
Description
General part information
Li2x5p Samsung 30Q Battery Pack
18650 3.6 V Lithium-Ion Battery Pack
Documents
Technical documentation and resources
No documents available
