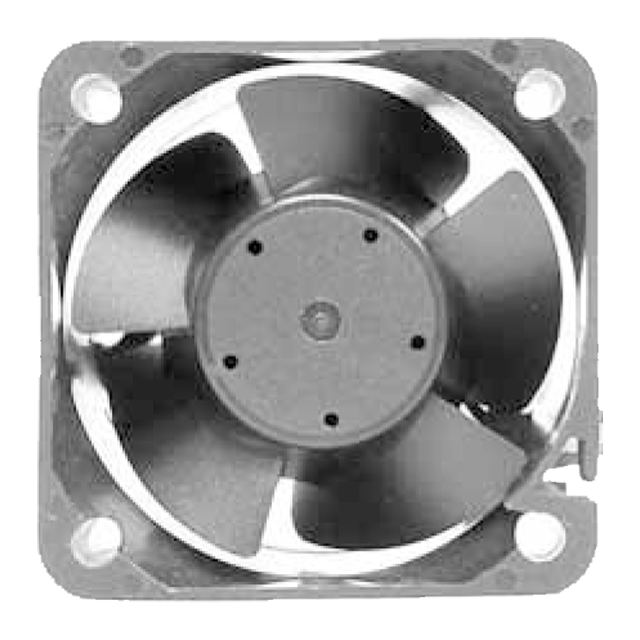

FD4028B12W11-3R
ActiveCooltron Industrial Supply
DC AXIAL FAN 40X40X28MM 12VDC
Deep-Dive with AI
Search across all available documentation for this part.
FD4028B12W11-3R
ActiveCooltron Industrial Supply
DC AXIAL FAN 40X40X28MM 12VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FD4028B12W11-3R |
|---|---|
| Air Flow | 0.412 mł/min |
| Air Flow | 14.7 CFM |
| Approval Agency | cUL, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.26 A |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 75000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 44 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 3.12 W |
| RPM | 11500 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 6 VDC |
| Weight | 24.04 g |
| Weight | 0.053 lb |
| Width [y] | 28 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 2 | $ 20.00 | |
| 10 | $ 18.00 | |||
| 20 | $ 17.50 | |||
Description
General part information
FD4028B12W11-3R
Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 14.7 CFM (0.412mł/min) 2 Wire Leads
