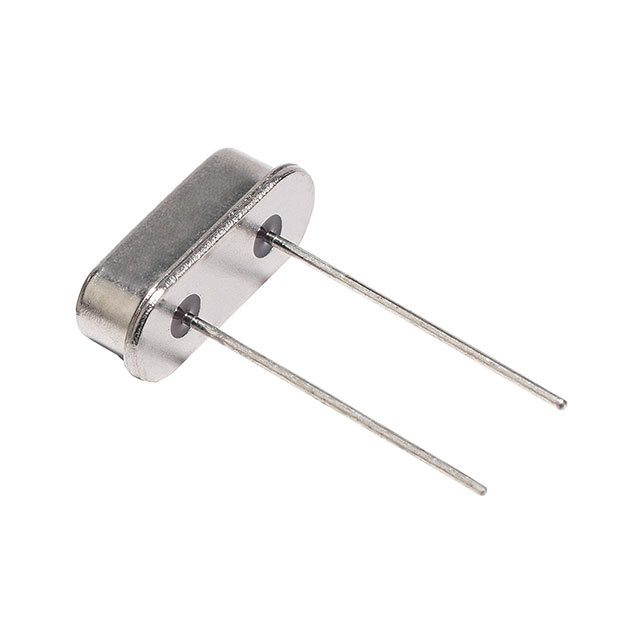

LFXTAL003200BULK
UnknownIQD FREQUENCY PRODUCTS
CRYSTAL 14.31818MHZ 30PF TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LFXTAL003200BULK
UnknownIQD FREQUENCY PRODUCTS
CRYSTAL 14.31818MHZ 30PF TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LFXTAL003200BULK |
|---|---|
| ESR (Equivalent Series Resistance) | 40 Ohms |
| Frequency | 14.31818 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) [Max] [z] | 4.1 mm |
| Height - Seated (Max) [Max] [z] | 0.161 " |
| Load Capacitance | 30 pF |
| Mounting Type | Through Hole |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | HC-49/US |
| Size / Dimension [x] | 0.435 in |
| Size / Dimension [x] | 11.05 mm |
| Size / Dimension [y] | 0.185 in |
| Size / Dimension [y] | 4.7 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 0.37 | |
Description
General part information
LFXTAL003200BULK
14.31818 MHz ±30ppm Crystal 30pF 40 Ohms HC-49/US
