R10-E1Z6-V430
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 6PDT 2A 24V
Deep-Dive with AI
Search across all available documentation for this part.
R10-E1Z6-V430
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 6PDT 2A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R10-E1Z6-V430 |
|---|---|
| Approval Agency | CSA, UR |
| Coil Resistance | 430 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | 6 Form C |
| Contact Form | 6PDT |
| Contact Material | Silver (Ag) |
| Contact Rating (Current) | 2 A |
| Load - Max Switching | 240 VA, 60 W |
| Mounting Type | Socketable |
| Must Operate Voltage | 18 VDC |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -55 °C |
| Relay Type | General Purpose |
| Switching Voltage | 30 VDC, 120 VAC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 143.51 | |
| 10 | $ 135.06 | |||
| 25 | $ 126.62 | |||
| 50 | $ 118.18 | |||
Description
General part information
R10-E1Z6-V430

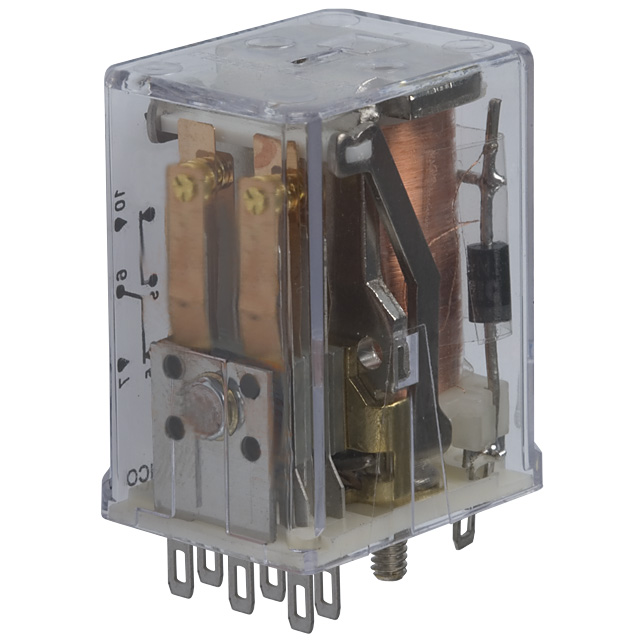

General Purpose Relay 6PDT (6 Form C) Socketable
Documents
Technical documentation and resources
No documents available
