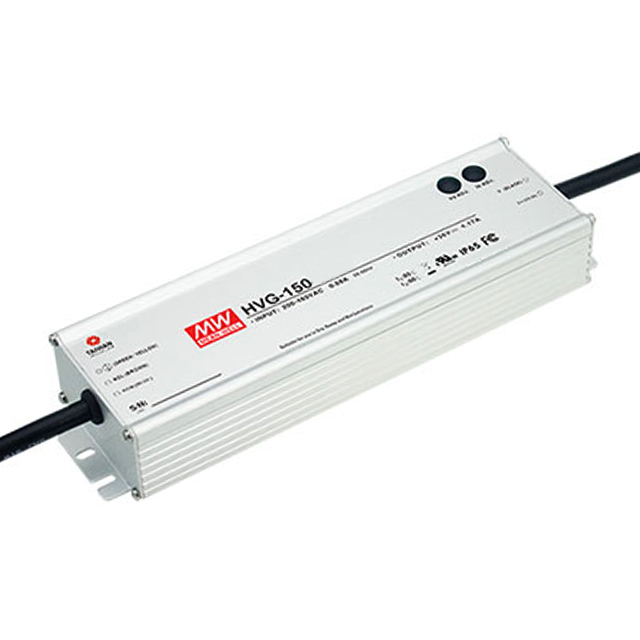

HVG-150-20B
ActiveMEAN WELL USA Inc.
LED DRVR CC/CV AC/DC 11-20V 7.5A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HVG-150-20B
ActiveMEAN WELL USA Inc.
LED DRVR CC/CV AC/DC 11-20V 7.5A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HVG-150-20B |
|---|---|
| Current - Output (Max) [Max] | 7.5 A |
| Dimming | Analog, PWM |
| Efficiency | 90.5 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 150 W |
| Ratings | IP67 |
| Size / Dimension [x] | 221 mm |
| Size / Dimension [x] | 8.7 " |
| Size / Dimension [y] | 2.68 " |
| Size / Dimension [y] | 68 mm |
| Size / Dimension [z] | 38.8 mm |
| Size / Dimension [z] | 1.53 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current, Voltage |
| Voltage - Input (Max) | 528 VAC |
| Voltage - Input (Min) [Min] | 180 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 20 V |
| Voltage - Output [Min] | 11 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 82.50 | |
| 5 | $ 78.60 | |||
| 10 | $ 75.10 | |||
| 25 | $ 72.90 | |||
Description
General part information
HVG-150-20B
7.5A 11 ~ 20V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
