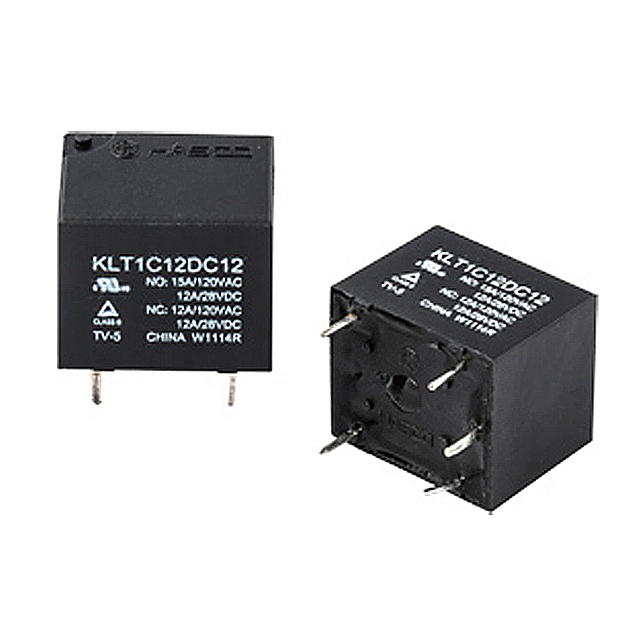

KLT1C12DC12
ActiveHasco Relays
RELAY SPDT 12A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KLT1C12DC12
ActiveHasco Relays
RELAY SPDT 12A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KLT1C12DC12 |
|---|---|
| Coil Current | 30 mA |
| Coil Insulation | Class B |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 12 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 5 ms |
| Switching Voltage [Max] | 277 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 20 | $ 0.77 | |
Description
General part information
KLT1C12DC12
Relay SPDT (1 Form C) 12VDC Coil Through Hole
