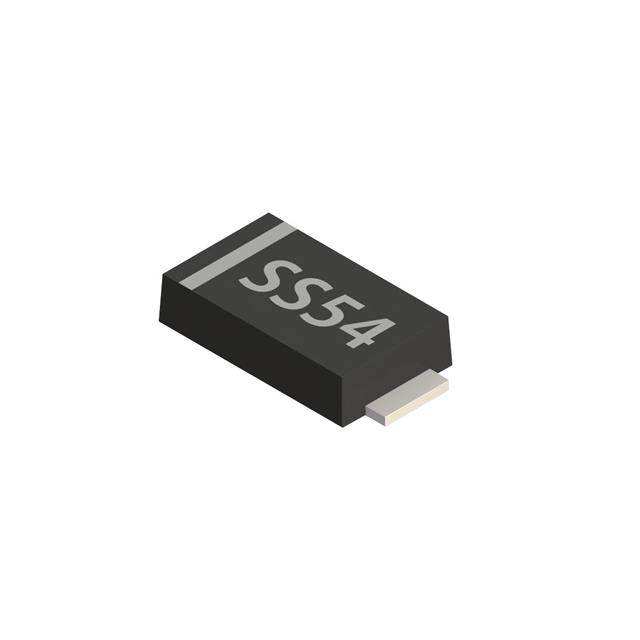

FM540-AHST-H
ActiveFormosa Microsemi Co., Ltd.
DIODE SCHOTTKY 40V 5A SMA-HST
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FM540-AHST-H
ActiveFormosa Microsemi Co., Ltd.
DIODE SCHOTTKY 40V 5A SMA-HST
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FM540-AHST-H |
|---|---|
| Capacitance @ Vr, F | 270 pF |
| Current - Average Rectified (Io) | 5 A |
| Current - Reverse Leakage @ Vr | 100 çA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 125 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | DO-221BC, SMA Flat Leads |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | SMA-HST |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10 | $ 0.35 | |
| 50 | $ 0.30 | |||
| 100 | $ 0.23 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.13 | |||
| 3000 | $ 0.12 | |||
Description
General part information
FM540-AHST-H
Diode 40 V 5A Surface Mount SMA-HST
