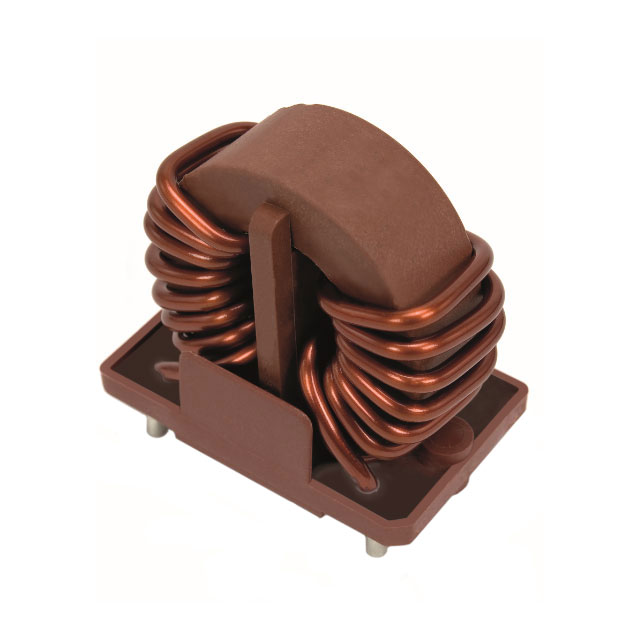

T60405R6128X230
ActiveVACUUMSCHMELZE
CMC 1.48MH 30A 2LN 1.62 KOHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T60405R6128X230
ActiveVACUUMSCHMELZE
CMC 1.48MH 30A 2LN 1.62 KOHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T60405R6128X230 |
|---|---|
| Current Rating (Max) [Max] | 30 A |
| Height (Max) [Max] | 47.3 mm |
| Height (Max) [Max] [z] | 1.862 in |
| Impedance @ Frequency | 1.62 kOhms |
| Inductance @ Frequency | 1.48 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 42 mm |
| Size / Dimension [x] | 1.654 in |
| Size / Dimension [y] | 27 mm |
| Size / Dimension [y] | 1.063 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 2520 | $ 10.64 | |
Description
General part information
T60405R6128X230
1.48 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 1.62 kOhms @ 100 kHz 30A DCR
