ATPGGBL5R2580A
ActiveYIC
RF ANT GPS L1+L5/GLONASS/BEIDOU
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ATPGGBL5R2580A
ActiveYIC
RF ANT GPS L1+L5/GLONASS/BEIDOU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ATPGGBL5R2580A |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GLONASS, GPS, Beidou |
| Frequency (Center/Band) | 1.561 GHz, 1.575 GHz, 1.602 GHz, 1.577 GHz, 1.176 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.607 GHz, 1.188 GHz, 1.563 GHz, 1.576 GHz |
| Frequency Range [Min] | 1.591 GHz, 1.574 GHz, 1.597 GHz, 1.559 GHz, 1.164 GHz |
| Gain | 0.6 dBi, 2.4 dBi, 3.4 dBi, 0.5 dBi |
| Height (Max) [Max] | 8 mm |
| Height (Max) [Max] [z] | 0.315 in |
| Mounting Type | Adhesive |
| Number of Bands [custom] | 5 |
| RF Family/Standard | Navigation |
| Termination | Pin |
| VSWR | 1.8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.78 | |
Description
General part information

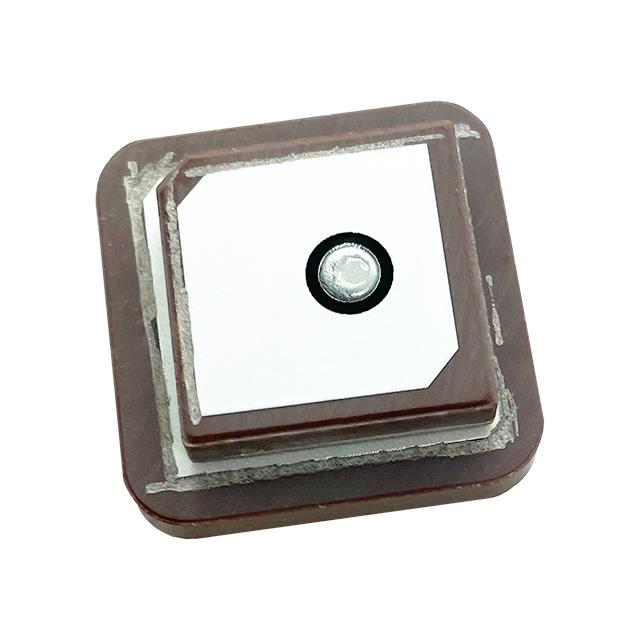

ATPGGBL5R2580A
RF ANTENNA Beidou, GLONASS, GPS Ceramic Patch Pin Adhesive
