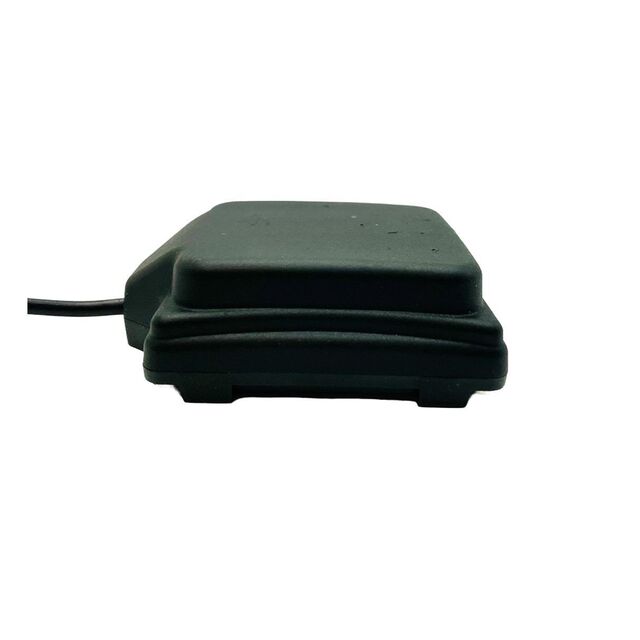

YOZ-52570ZZ01-YM
ActiveYokowo Manufacturing of America, LLC.
GNSS ANTENNA L1 L2
Deep-Dive with AI
Search across all available documentation for this part.
YOZ-52570ZZ01-YM
ActiveYokowo Manufacturing of America, LLC.
GNSS ANTENNA L1 L2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | YOZ-52570ZZ01-YM |
|---|---|
| Applications | GPS, GLONASS, Beidou, GNSS |
| Features | 5 m |
| Frequency (Center/Band) | 1.575 GHz, 1.228 GHz, 1.602 GHz, 1.207 GHz, 1.561 GHz, 1.246 GHz |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.25 GHz, 1.606 GHz |
| Frequency Range [Min] | 1.559 GHz, 1.197 GHz |
| Gain | 29.2 dBic, 25.8 dBic, 27.9 dBic, 26.3 dBic, 29.5 dB, 29.4 dBic |
| Grade | Automotive |
| Height (Max) | 56.4 mm |
| Height (Max) [Max] | 2.22 in |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Number of Bands | 6 |
| Return Loss | -6 dB, -10.2 dB, -9 dB, -15.6 dB, -10.9 dB |
| RF Family/Standard | Navigation |
| Termination | SMA Male (1) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 45.00 | |
Description
General part information
YOZ-52570ZZ01-YM
RF ANTENNA Beidou, GLONASS, GNSS, GPS Omni-Directional SMA Male (1) Adhesive
Documents
Technical documentation and resources
No documents available
