MPQ3326BGRE-AEC1-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
16-CHANNEL, 80MA/CH, LED DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPQ3326BGRE-AEC1-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
16-CHANNEL, 80MA/CH, LED DRIVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPQ3326BGRE-AEC1-Z |
|---|---|
| Current - Output / Channel | 80 mA |
| Dimming | PWM, Analog, I2C |
| Frequency | 280 Hz, 330 Hz, 250 Hz, 220 Hz |
| Grade | Automotive |
| Internal Switch(s) | True |
| Mounting Type | Wettable Flank, Surface Mount |
| Number of Outputs | 16 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |

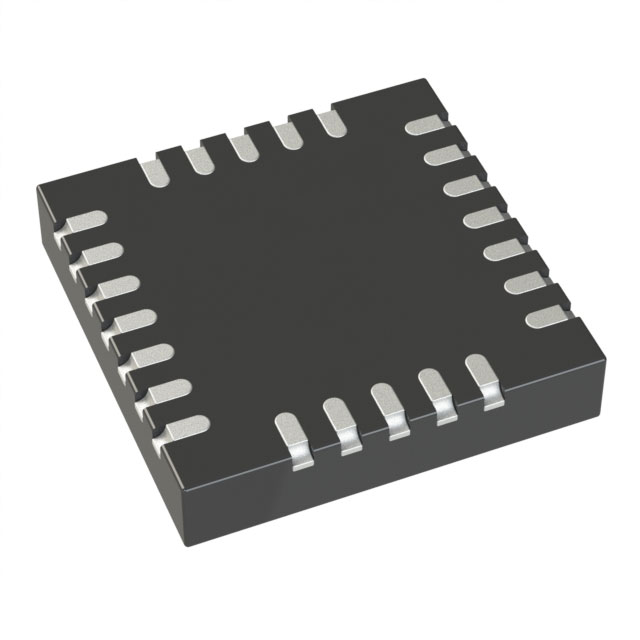

| Package / Case | 24-VFQFN |
| Qualification | AEC-Q100 |
| Supplier Device Package | 24-QFN (4x4) |
| Type | Linear |
| Voltage - Supply (Max) [Max] | 16 V |
| Voltage - Supply (Min) [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.71 | |
| 10 | $ 4.23 | |||
| 25 | $ 4.00 | |||
| 100 | $ 3.47 | |||
| 250 | $ 3.29 | |||
| 500 | $ 2.95 | |||
| 1000 | $ 2.49 | |||
| 2500 | $ 2.36 | |||
| Digi-Reel® | 1 | $ 4.71 | ||
| 10 | $ 4.23 | |||
| 25 | $ 4.00 | |||
| 100 | $ 3.47 | |||
| 250 | $ 3.29 | |||
| 500 | $ 2.95 | |||
| 1000 | $ 2.49 | |||
| 2500 | $ 2.36 | |||
| Tape & Reel (TR) | 5000 | $ 2.28 | ||
Description
General part information
MPQ3326BGRE-AEC1-Z
LED Driver IC 16 Output Linear Analog, I2C, PWM Dimming 80mA 24-QFN (4x4)
