Technical Specifications
Parameters and characteristics for this part
| Specification | RSB2-25M-A1K-C |
|---|---|
| Accuracy | 0.05 % |
| Actuator Type | Pushbutton |
| Compensated Temperature [Max] | 40 °C |
| Compensated Temperature [Min] | -10 °C |
| Includes | Power Supply, Analog Interface, Calibration w/Certificate, Sensor |
| Operating Force | 55 lbs |
| Operating Force | 25 kgf |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output [Max] | 4.5 V |
| Output [Min] | 0.5 V |
| Sensor Type | Load Cell |
| Voltage - Supply [Max] | 10 V |
| Voltage - Supply [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 848.00 | |
Description
General part information

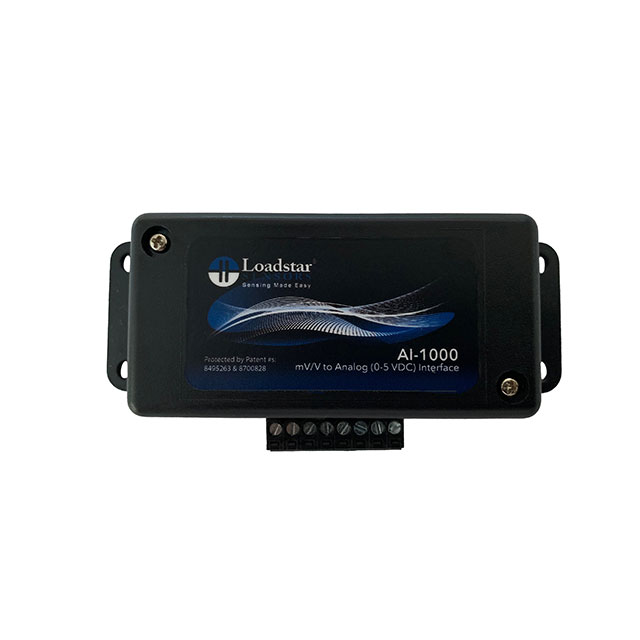

RSB2-25M-A1K-C
25 KGF BUTTON ANALOG KIT
