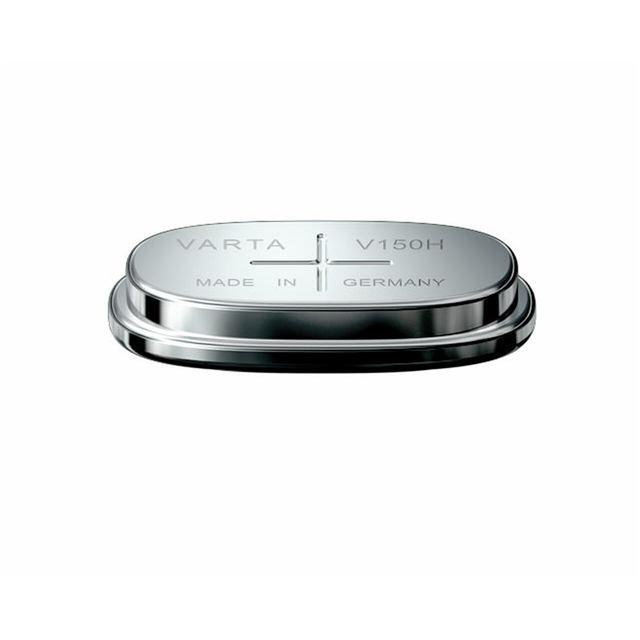

V150H
ActiveVARTA
BATTERY NIMH 1.2V 150MAH
Deep-Dive with AI
Search across all available documentation for this part.
V150H
ActiveVARTA
BATTERY NIMH 1.2V 150MAH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V150H |
|---|---|
| Battery Chemistry | Nickel Metal Hydride |
| Capacity | 150 mAh |
| Discharge Rate | 280 mA |
| Size / Dimension [x] | 1.01 in |
| Size / Dimension [x] | 25.6 mm |
| Size / Dimension [y] | 0.56 in |
| Size / Dimension [y] | 14.1 mm |
| Size / Dimension [z] | 0.23 " |
| Size / Dimension [z] | 5.9 mm |
| Standard Charge Current | 14 mA |
| Standard Charge Time | 16 Hrs |
| Termination Style | Requires Holder |
| Voltage - Rated | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 35 | $ 3.32 | |
| 875 | $ 2.45 | |||
| 1750 | $ 2.35 | |||
Description
General part information
V150H
1.2 V Nickel Metal Hydride Battery Rechargeable (Secondary) 150mAh
Documents
Technical documentation and resources
No documents available
