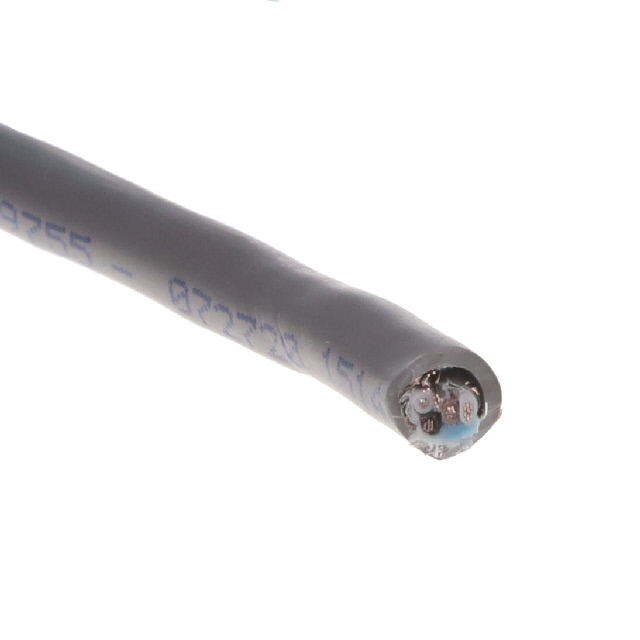

5695 SL001 - 5695 SL005

5695 SL001

Active
ALPHA WIRE

MULTI-PAIR 4COND 26AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENXtra-Guard Catalog+2
5695 SL001 - 5695 SL005

5695 SL001

Active
ALPHA WIRE

MULTI-PAIR 4COND 26AWG

Deep-Dive with AI

DocumentsTechnical Data Sheet ENXtra-Guard Catalog+2

Technical Specifications

Parameters and characteristics for this part

Specification5695 SL001
Cable TypeMulti-Pair
Conductor InsulationPoly-Vinyl Chloride (PVC)
Conductor MaterialCopper, Tinned
Conductor Strand7 Strands, 34 AWG
FeaturesRip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]5.69 mm
Jacket (Insulation) Diameter [diameter]0.224 in
Jacket (Insulation) MaterialPoly-Vinyl Chloride (PVC)
Jacket ColorSlate
Length1000 ft
Length304.8 m
Number of Conductors4
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-35 °C
RatingsUL Style 2464, ISO 10993
Shield Coverage70 %, 100 %
Shield MaterialCopper, Tinned, Aluminum
Shield TypeFoil, Braid
UsageControl, Communication
Voltage300 V
Wire Gauge26 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeySpool 1000$ 3.63
NewarkSpool of 1000 1$ 4076.13

Description

General part information

5695 SL001

4 (2 Pair Twisted) Conductor Multi-Pair Cable Slate 26 AWG Foil, Braid 1000.0' (304.8m)
