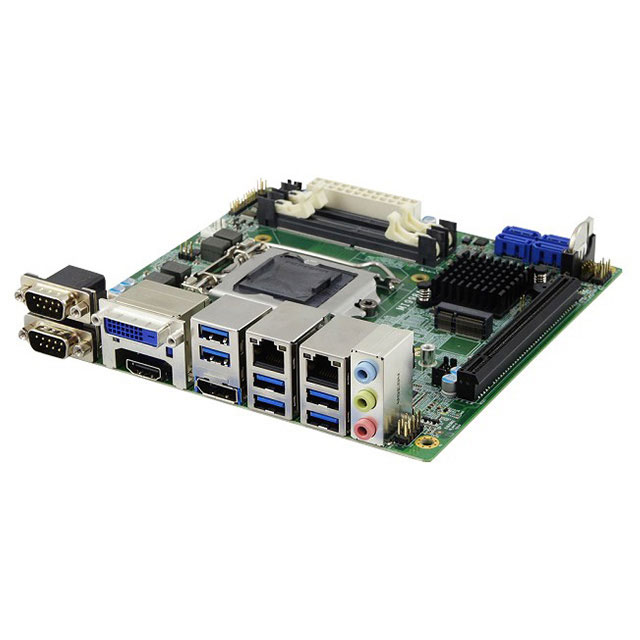

MI998AF-C246
ActiveiBASE Technology
SBC 4.7GHZ 1 CORE 32GB/0GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
MI998AF-C246
ActiveiBASE Technology
SBC 4.7GHZ 1 CORE 32GB/0GB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MI998AF-C246 |
|---|---|
| Core Processor | Pentium, Xeon, Intel Core, Celeron |
| Ethernet | GbE (2) |
| Expansion Site/Bus | PCI |
| Form Factor | mini-ITX |
| Number of Cores | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| RAM Capacity/Installed | 32 GB, 0 GB |
| RS-232 (422, 485) | 2 |
| Size / Dimension [x] | 169.92 mm |
| Size / Dimension [x] | 6.69 " |
| Size / Dimension [y] | 6.69 in |
| Size / Dimension [y] | 169.92 mm |
| Speed | 4.7 GHz |
| Storage Interface | M.2, SATA III |
| USB | USB 3.0 (6), USB 2.0 (2) |
| Video Outputs | DVI, HDMI, Display Port, LVDS |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 446.67 | |
Description
General part information
MI998AF-C246
Single Board Computer 4.7GHz 1 Core 32GB/0GB RAM Intel Core/Celeron/Pentium/Xeon
Documents
Technical documentation and resources
No documents available
