PS2502-1
ActiveIsocom Components 2004 LTD
4PIN DARLINGTON OUTPUT, SINGLE O
Deep-Dive with AI
Search across all available documentation for this part.
PS2502-1
ActiveIsocom Components 2004 LTD
4PIN DARLINGTON OUTPUT, SINGLE O
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PS2502-1 |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Current Transfer Ratio (Min) [Min] | 200 % |
| Input Type | DC |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | Darlington |

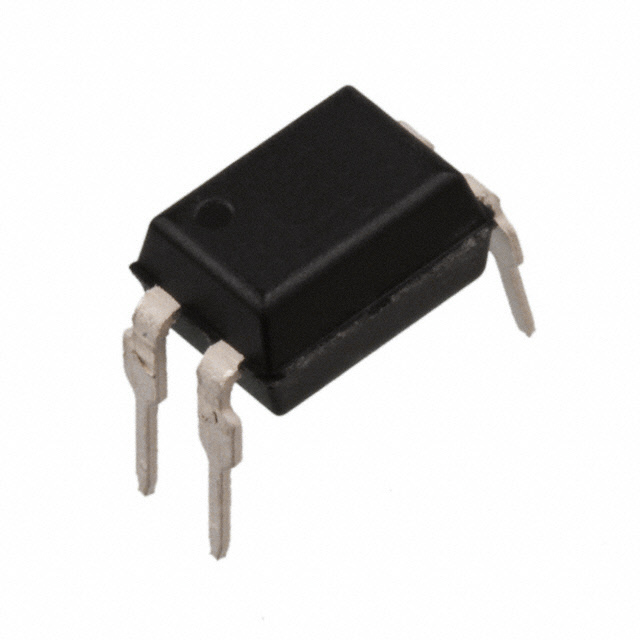

| Package / Case | 4-DIP (0.300", 7.62mm) |
| Rise / Fall Time (Typ) [custom] | 60 µs |
| Rise / Fall Time (Typ) [custom] | 53 µs |
| Supplier Device Package | 4-DIP |
| Vce Saturation (Max) [Max] | 1 V |
| Voltage - Isolation | 5300 Vrms |
| Voltage - Output (Max) [Max] | 40 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 2000 | $ 0.28 | |
Description
General part information
PS2502-1
Optoisolator Darlington Output 5300Vrms 1 Channel 4-DIP
Documents
Technical documentation and resources
No documents available
