TSA74-N1S1-F75
ActiveConductRF

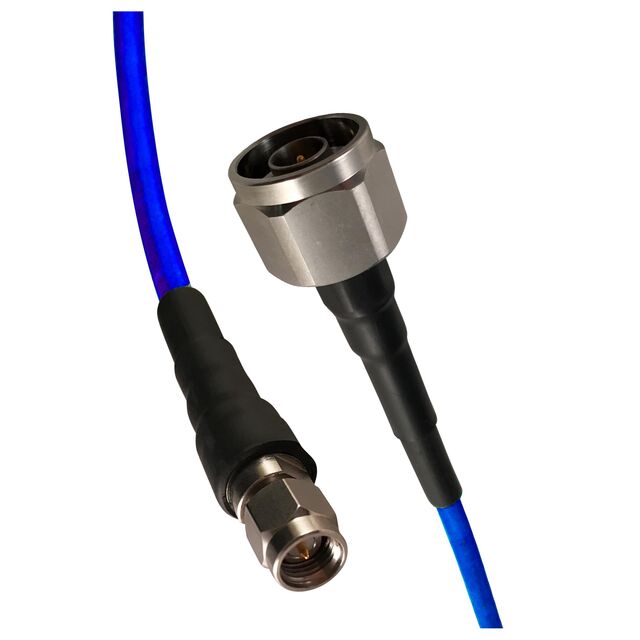

CBL ASSY SMA-NTYPE PLUG-PLUG 75'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TSA74-N1S1-F75
ActiveConductRF
CBL ASSY SMA-NTYPE PLUG-PLUG 75'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TSA74-N1S1-F75 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | 4.95mm OD Coaxial Cable |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 18 GHz |
| Length | 900 (22.9m), 22.86 m |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1328.88 | |
| 5 | $ 1181.23 | |||
| 10 | $ 1119.06 | |||
| 25 | $ 1063.10 | |||
| 50 | $ 1012.48 | |||
| 100 | $ 966.46 | |||
| 250 | $ 924.44 | |||
| 500 | $ 885.92 | |||
| 1000 | $ 850.48 | |||
Description
General part information
TSA74-N1S1-F75
Cable Assembly Coaxial SMA to N-Type 4.95mm OD Coaxial Cable 900.0" (22.9m) 75.0'
