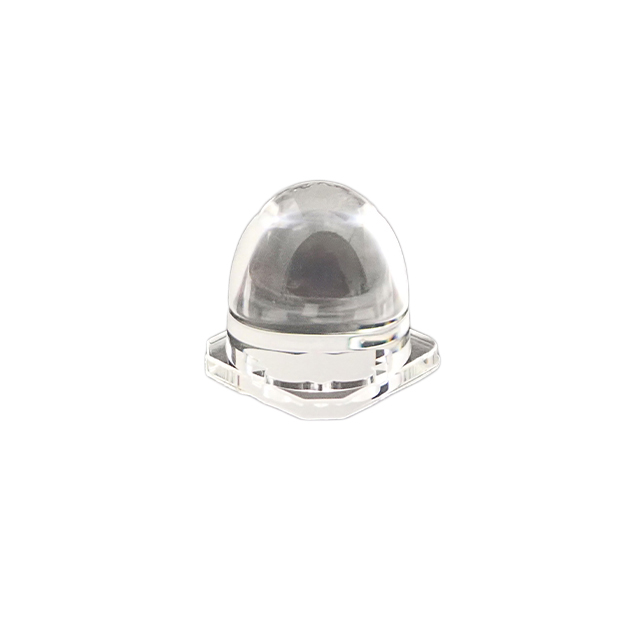

AL-10M-275
ActiveASAHI RUBBER INC.
LENS CLEAR 8-14DEG SPOT ADHESIVE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AL-10M-275
ActiveASAHI RUBBER INC.
LENS CLEAR 8-14DEG SPOT ADHESIVE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AL-10M-275 |
|---|---|
| Color | Clear |
| For Use With/Related Manufacturer | Nichia |
| Lens Size [x] | 10 mm |
| Lens Size [y] | 10 mm |
| Lens Style | Square with Domed Top |
| Lens Transparency | Clear |
| Material | Silicone |
| Mounting Type | Adhesive |
| Number of LEDs | 1 |
| Optical Pattern | Spot |
| Type | Lens |
| Viewing Angle [Max] | 14 ° |
| Viewing Angle [Min] | 8 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 5 | $ 9.50 | |
| 10 | $ 7.00 | |||
| 15 | $ 6.00 | |||
| 20 | $ 5.50 | |||
Description
General part information
AL-10M-275
Lens Clear 8° ~ 14° Spot Adhesive
