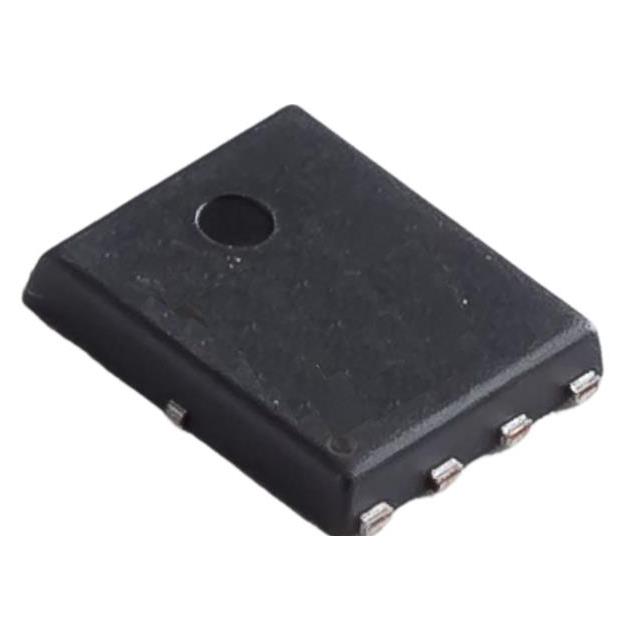

MSHM30N46
ActiveBruckewell
N-CHANNEL MOSFET,30V,46A,DFN3X3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSHM30N46
ActiveBruckewell
N-CHANNEL MOSFET,30V,46A,DFN3X3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSHM30N46 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 46 A |
| Drain to Source Voltage (Vdss) | 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V |
| FET Type | N-Channel |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-VDFN Exposed Pad |
| Rds On (Max) @ Id, Vgs | 9 mOhm |
| Supplier Device Package | DFN3333 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 0.45 | |
Description
General part information
MSHM30N46
N-Channel 30 V 46A (Ta) Surface Mount DFN3333
