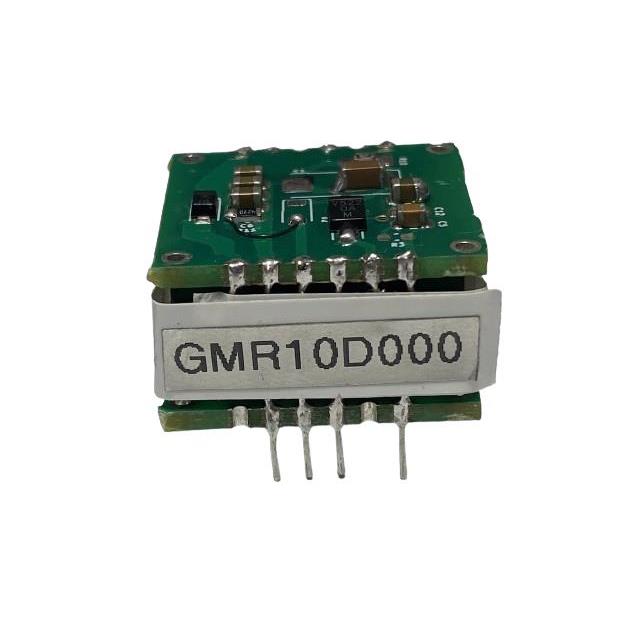

GMR10D000
ActiveGanmar Technologies
15W DUAL OUTPUT ISOLATED MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GMR10D000
ActiveGanmar Technologies
15W DUAL OUTPUT ISOLATED MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GMR10D000 |
|---|---|
| Applications | Industrial, Railway |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | 85.5 % |
| Features | OVP, OCP, OTP |
| Mounting Type | Through Hole, Vertical |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 24 mm |
| Size / Dimension [x] | 0.94 in |
| Size / Dimension [y] | 22 mm |
| Size / Dimension [y] | 0.87 in |
| Size / Dimension [z] | 22.5 mm |
| Size / Dimension [z] | 0.89 in |
| Supplier Device Package | 16-DIP |
| Type | Isolated Module, Conformal Coated |
| Voltage - Input (Max) [Max] | 320 V |
| Voltage - Input (Min) [Min] | 100 VDC |
| Voltage - Isolation | 1 kVA |
| Voltage - Output 1 | 6 V |
| Voltage - Output 2 | 22 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 59.95 | |
Description
General part information
GMR10D000
Isolated Module, Conformal Coated DC DC Converter 2 Output 6V 22V 500mA 100V - 320V Input
