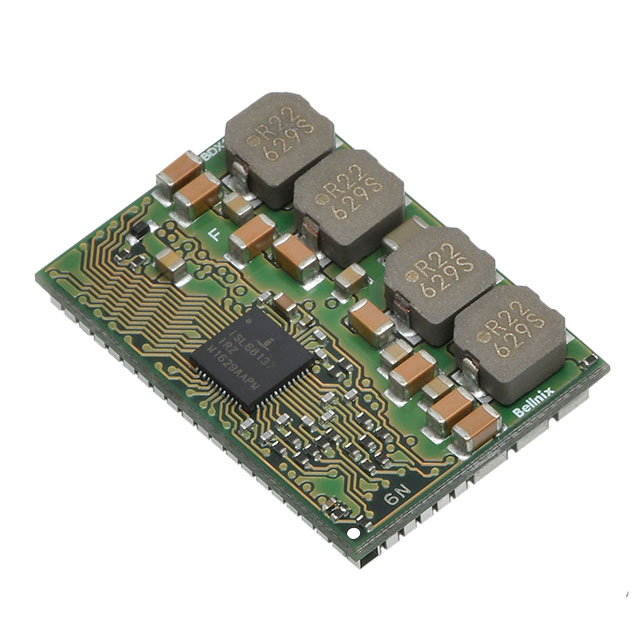

BDX12-1.0S100RM
ActiveBellnix Co., Ltd.
DC DC CONVERTER 1V
Deep-Dive with AI
Search across all available documentation for this part.
BDX12-1.0S100RM
ActiveBellnix Co., Ltd.
DC DC CONVERTER 1V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BDX12-1.0S100RM |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 100 A |
| Efficiency | 89 % |
| Features | Remote Sense, Adjustable Output, PMBus™, Remote On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 41-SMD Module |
| Size / Dimension [x] | 1.29 in |
| Size / Dimension [x] | 32.8 mm |
| Size / Dimension [y] | 23 mm |
| Size / Dimension [y] | 0.91 in |
| Size / Dimension [z] | 0.28 " |
| Size / Dimension [z] | 7 mm |
| Type | Non-Isolated PoL Module, Digital |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 8 V |
| Voltage - Output 1 | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 81.34 | |
Description
General part information
BDX12-1.0S100RM
Non-Isolated PoL Module, Digital DC DC Converter 1 Output 1V 100A 8V - 14V Input
Documents
Technical documentation and resources
No documents available
