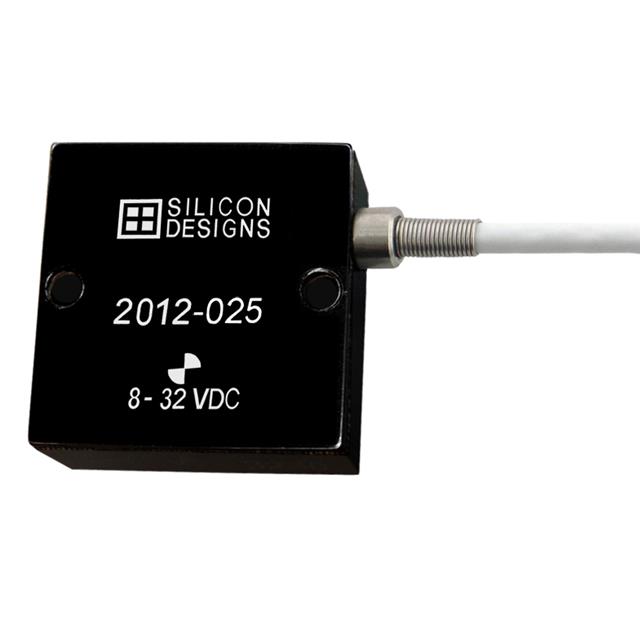

2012-025
ActiveSilicon Designs
1-AXIS 25G DC ACCEL 5V POWER
Deep-Dive with AI
Search across all available documentation for this part.
2012-025
ActiveSilicon Designs
1-AXIS 25G DC ACCEL 5V POWER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2012-025 |
|---|---|
| Acceleration Range [Max] | 25 g |
| Acceleration Range [Min] | -25 g |
| Axis [x] | X |
| Bandwidth [Max] | 1.75 kHz |
| Bandwidth [Min] | 0 Hz |
| Mounting Type | Screw Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | Analog Voltage |
| Package / Case | Module |
| Sensitivity (mV/g) | 160 mV/g |
| Supplier Device Package | Module |
| Type | Analog |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 687.50 | |
| 25 | $ 667.50 | |||
| 50 | $ 647.50 | |||
| 100 | $ 621.25 | |||
| 500 | $ 601.50 | |||
| 1000 | $ 582.00 | |||
Description
General part information
2012-025
Accelerometer X Axis ±25g 0Hz ~ 1.75kHz Module
Documents
Technical documentation and resources
No documents available
