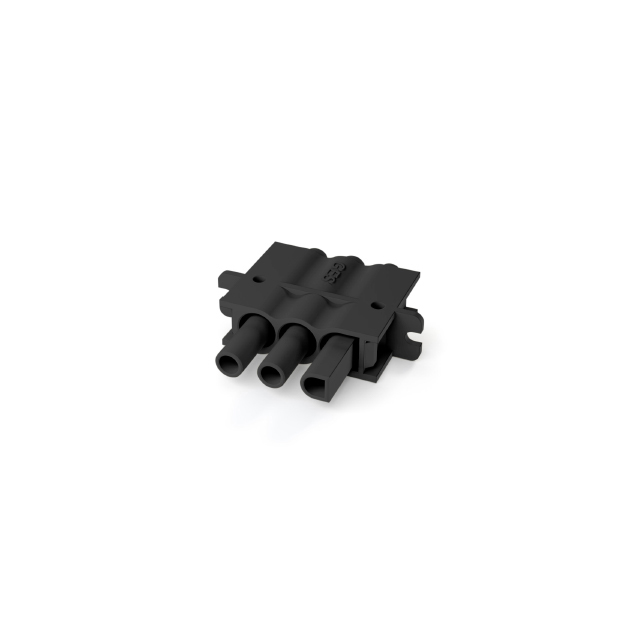

5000484
ActiveGES High Voltage
VP-CL-3HV-BU AWG 14 AG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5000484 |
|---|---|
| Cable Opening [custom] | 0.157 in |
| Cable Opening [custom] | 4 mm |
| Color | Black |
| Connector Type | Receptacle, Female Pins |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 13 A |
| Fastening Type | Snap In, Latch Holder |
| Features | Heat Shrink, High Voltage Connector |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Brackets |
| Mounting Type | Free Hanging (In-Line), Panel Mount |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Shielding | Unshielded |
| Termination | Solder, Crimp |
| Voltage Rating | 13000 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 2 | $ 54.99 | |
| 10 | $ 52.24 | |||
| 26 | $ 49.49 | |||
| 50 | $ 46.74 | |||
| 100 | $ 43.99 | |||
| 250 | $ 41.24 | |||
Description
General part information
5000484
3 Position Circular Connector Receptacle, Female Pins Crimp, Solder
