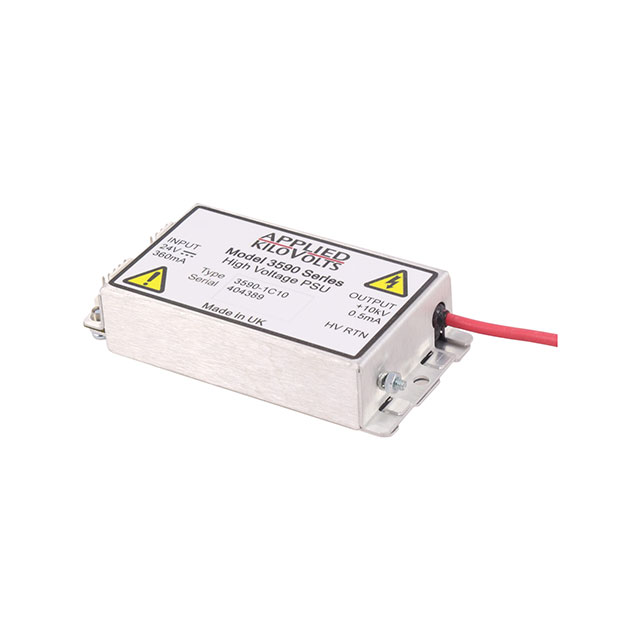

3590-2C20
ActiveApplied Kilovolts Ltd.
DC/DC CONVERTER -10000V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3590-2C20
ActiveApplied Kilovolts Ltd.
DC/DC CONVERTER -10000V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3590-2C20 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL |
| Current - Output (Max) [Max] | 500 µA |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 3.75 in |
| Size / Dimension [x] | 95.3 mm |
| Size / Dimension [y] | 49.8 mm |
| Size / Dimension [y] | 1.96 " |
| Size / Dimension [z] | 20.1 mm |
| Size / Dimension [z] | 0.79 in |
| Type | Enclosed, High Voltage |
| Voltage - Input (Max) [Max] | 30 V |
| Voltage - Input (Min) [Min] | 21.6 V |
| Voltage - Output 1 | -10000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 475.00 | |
Description
General part information
3590-2C20
Enclosed, High Voltage DC DC Converter 1 Output -10000V 500µA 30V Input
