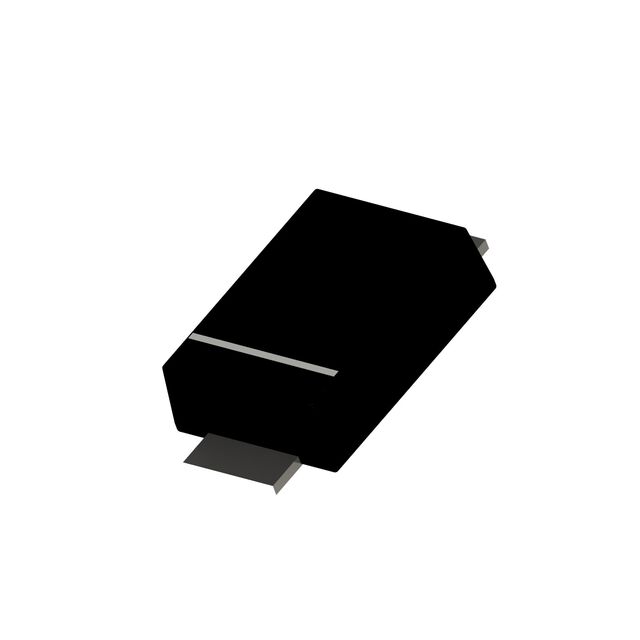

FC06004Y
ActivefastSiC
DIODE SIL CARB 650V 4A SMAF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FC06004Y
ActivefastSiC
DIODE SIL CARB 650V 4A SMAF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FC06004Y |
|---|---|
| Capacitance @ Vr, F | 10 pF |
| Current - Average Rectified (Io) | 4 A |
| Current - Reverse Leakage @ Vr | 0.5 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |
| Package / Case | SMA Flat Leads, DO-221AC |
| Speed | No Recovery Time |
| Supplier Device Package | DO-221AC (SlimSMA) |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 650 V |
| Voltage - Forward (Vf) (Max) @ If [Max] | 1.85 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 1.14 | |
| 10 | $ 0.42 | |||
| 100 | $ 0.39 | |||
| 10000 | $ 0.30 | |||
Description
General part information
FC06004Y
Diode 650 V 4A Surface Mount DO-221AC (SlimSMA)
