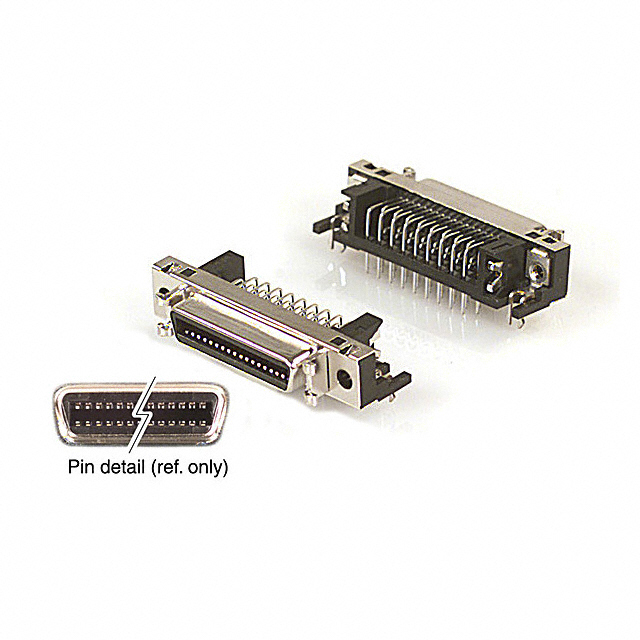

DX10G1M-36SE
ObsoleteHirose Electric USA, Inc.
CONN MINI HD RCPT 36P R/A SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDXM シリーズ
DX10G1M-36SE
ObsoleteHirose Electric USA, Inc.
CONN MINI HD RCPT 36P R/A SOLDER
Deep-Dive with AI
DocumentsDXM シリーズ
Technical Specifications
Parameters and characteristics for this part
| Specification | DX10G1M-36SE |
|---|---|
| Connector Style | Outer Shroud Contacts |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell |
| Flange Feature | 2.6 M |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 36 |
| Number of Rows | 2 |
| Termination | Solder |
| Type | Miniature High Density (HD) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DX10G1M-36SE
36 Position Receptacle Connector Miniature High Density (HD) Panel Mount, Through Hole, Right Angle Solder
