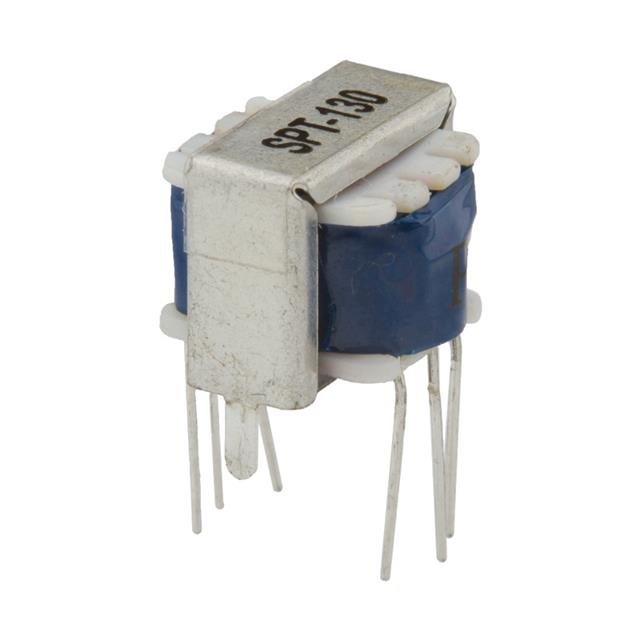

SPT-130
ActivePrem Magnetics, Inc.
AUDIO XFMR 600CT / 600CT TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SPT-130
ActivePrem Magnetics, Inc.
AUDIO XFMR 600CT / 600CT TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SPT-130 |
|---|---|
| DC Resistance (DCR) - Secondary [custom] | 40 Ohm |
| Height - Seated (Max) [Max] [z] | 11 mm |
| Height - Seated (Max) [Max] [z] | 0.433 in |
| Impedance - Primary (Ohms) | 600CT |
| Impedance - Secondary (Ohms) | 600CT |
| Mounting Type | Through Hole |
| Power Level | 75 mW |
| Size / Dimension [x] | 0.598 in |
| Size / Dimension [x] | 15.2 mm |
| Size / Dimension [y] | 12 mm |
| Size / Dimension [y] | 0.472 " |
| Termination Style | PC Pin |
| Transformer Type | Economical Open Type |
| Voltage - Isolation | 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 6.33 | |
| 25 | $ 6.01 | |||
| 50 | $ 5.69 | |||
| 100 | $ 5.38 | |||
Description
General part information
SPT-130
600CT Impedance Primary Ohms 600CT Impedance Secondary Ohms Audio Transformer Through Hole
