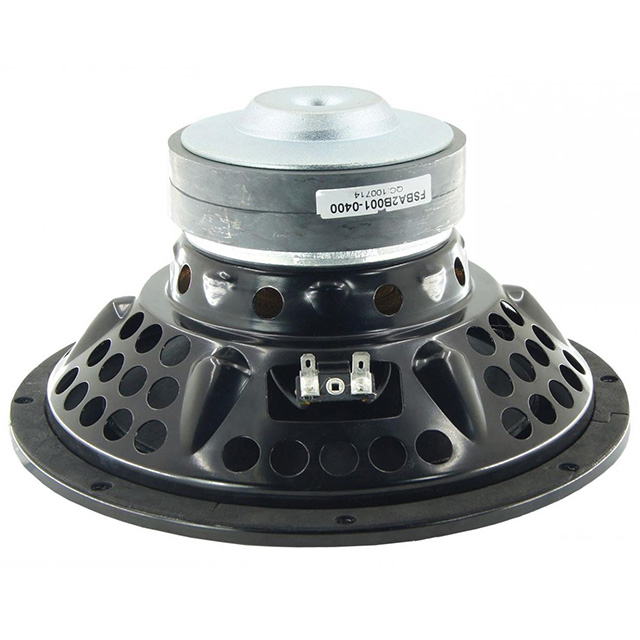

SBS-250F38CP01-04
ObsoletePeerless by Tymphany
SPEAKR 6.26OHM 200W TOP 85.5DB
Deep-Dive with AI
Search across all available documentation for this part.
SBS-250F38CP01-04
ObsoletePeerless by Tymphany
SPEAKR 6.26OHM 200W TOP 85.5DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SBS-250F38CP01-04 |
|---|---|
| Efficiency - dBA | 85.5 dBA |
| Efficiency - Type | Half Space Sensitivity |
| Frequency - Self Resonant | 49.96 Hz |
| Frequency Range [Max] | 200 Hz |
| Frequency Range [Min] | 40 Hz |
| Height - Seated (Max) [Max] [z] | 5.583 in |
| Height - Seated (Max) [Max] [z] | 141.8 mm |
| Impedance | 6.26 Ohms |
| Material - Cone [custom] | Paper, Coated |
| Material - Magnet | Ferrite |
| Port Location | Top |
| Power - Rated | 200 W |
| Shape | Round |
| Size / Dimension [diameter] | 10.374 in, 263.5 mm |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Subwoofer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SBS-250F38CP01-04
6.26 Ohms Subwoofer Speaker 200 W 40 Hz ~ 200 Hz Top Round
Documents
Technical documentation and resources
No documents available
