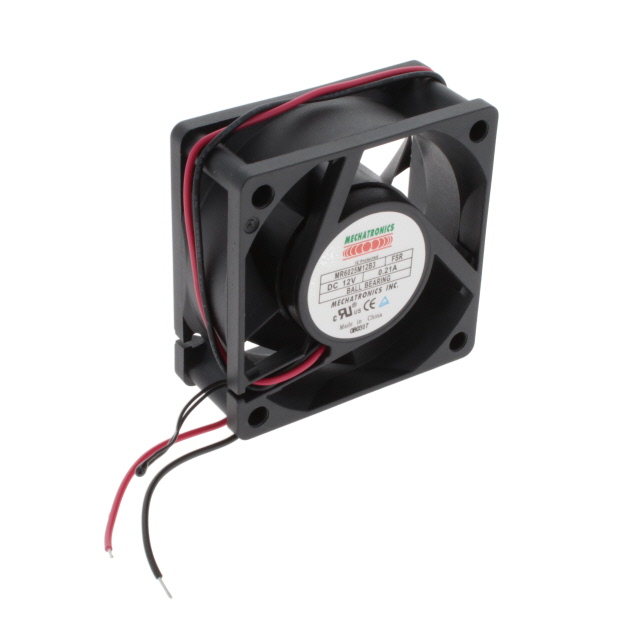

MR6025M12B3-FSR
ActiveMechatronics Bearing Group
FAN AXIAL 60X25MM 12VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDC Lead Wire Specs
MR6025M12B3-FSR
ActiveMechatronics Bearing Group
FAN AXIAL 60X25MM 12VDC
Deep-Dive with AI
DocumentsDC Lead Wire Specs
Technical Specifications
Parameters and characteristics for this part
| Specification | MR6025M12B3-FSR |
|---|---|
| Air Flow | 0.75 mł/min |
| Air Flow | 26.8 CFM |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.21 A |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Thermistor |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 40 dB(A) |
| RPM | 5500 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 87.2 Pa |
| Static Pressure | 0.35 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Width [x] | 25.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.50 | |
Description
General part information
MR6025M12B3-FSR
Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 26.8 CFM (0.750m³/min) 2 Wire Leads
