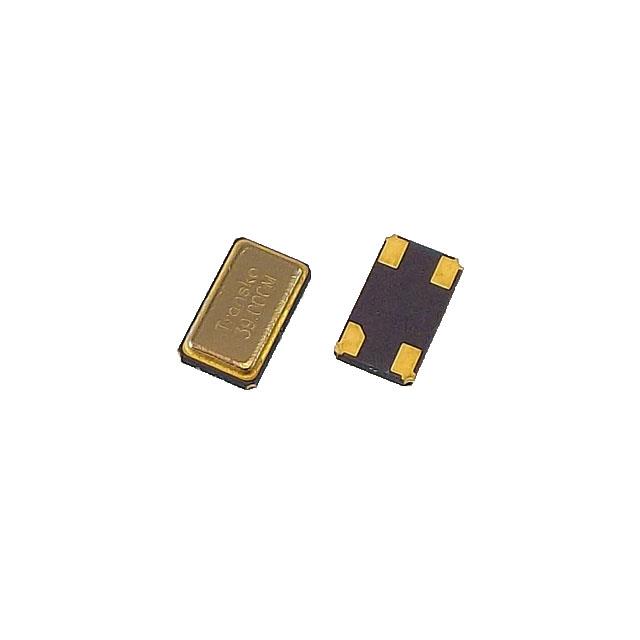

CS63A-F2525CQ10-14.7456M-TR
ActiveTransko Electronics, Inc.
14.7456MHZ CRYSTAL, 10PF LOAD, F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS63A-F2525CQ10-14.7456M-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 40 Ohms |
| Frequency | 14.7456 MHz |
| Frequency Stability | 25 ppm |
| Frequency Tolerance | 25 ppm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.236 in |
| Size / Dimension [x] | 6 mm |
| Size / Dimension [y] | 3.5 mm |
| Size / Dimension [y] | 0.138 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.35 | |
Description
General part information
CS63A-F2525CQ10-14.7456M-TR
14.7456 MHz ±25ppm Crystal 10pF 40 Ohms 4-SMD, No Lead
