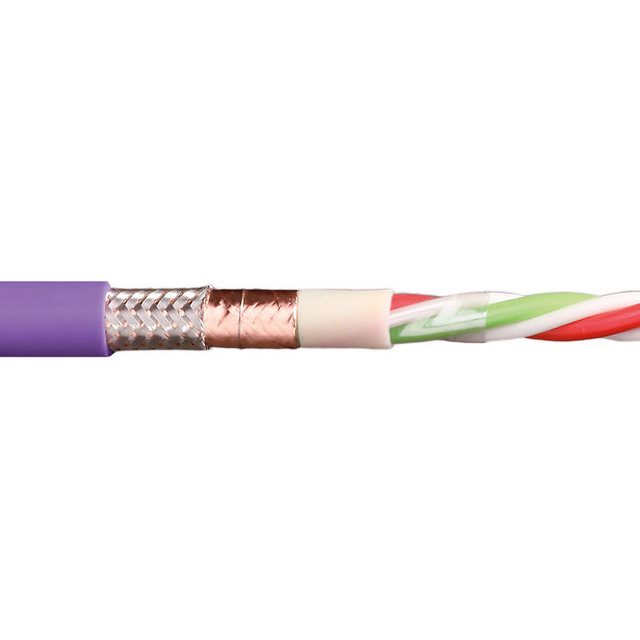

CFBUS-030
ActiveIgus
CABLE 4COND 22/24AWG VIO 1=1FT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CFBUS-030 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Thermoplastic Elastomer (TPE) |
| Conductor Material | Copper, Tinned |
| Features | Flame Retardant, Oil Resistant |
| Jacket (Insulation) Diameter [diameter] | 0.295 in |
| Jacket (Insulation) Diameter [diameter] | 7.49 mm |
| Jacket (Insulation) Material | Thermoplastic Elastomer (TPE) |
| Jacket Color | Violet |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 4 |
| Shield Coverage | 70 %, 100 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Voltage | 50 V |
| Wire Gauge | 22 AWG, 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.04 | |
| 500 | $ 6.77 | |||
| 1000 | $ 6.50 | |||
Description
General part information
CFBUS-030
4 Conductor Multi-Conductor Cable Violet 22 AWG, 24 AWG Foil, Braid Enter Number of Feet in Order Quantity
