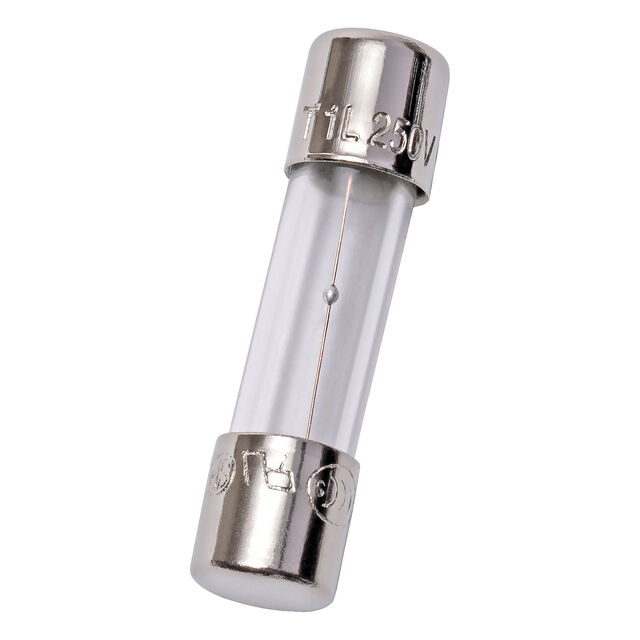

GDG4
ActiveMersen USA Newburyport-MA L.L.C.
FUSE,MIDGET,TIME DELAY,GLASS,PC
Deep-Dive with AI
Search across all available documentation for this part.
GDG4
ActiveMersen USA Newburyport-MA L.L.C.
FUSE,MIDGET,TIME DELAY,GLASS,PC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GDG4 |
|---|---|
| Approval Agency | CSA, UR |
| Breaking Capacity @ Rated Voltage | 40 A |
| Current Rating (Amps) | 4 A |
| Mounting Type | Requires Holder |
| Package / Case [x] | 5 mm |
| Package / Case [y] | 20 mm |
| Response Time | Slow Blow |
| Size / Dimension [diameter] | 5 mm |
| Size / Dimension [diameter] | 0.197 " |
| Size / Dimension [x] | 20 mm |
| Size / Dimension [x] | 0.787 in |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.23 | |
| 5 | $ 3.51 | |||
| 10 | $ 3.24 | |||
| 50 | $ 2.69 | |||
| 100 | $ 2.48 | |||
| 250 | $ 2.23 | |||
| 500 | $ 2.05 | |||
| 1000 | $ 1.89 | |||
| 5000 | $ 1.69 | |||
Description
General part information
GDG4
4 A 250 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
