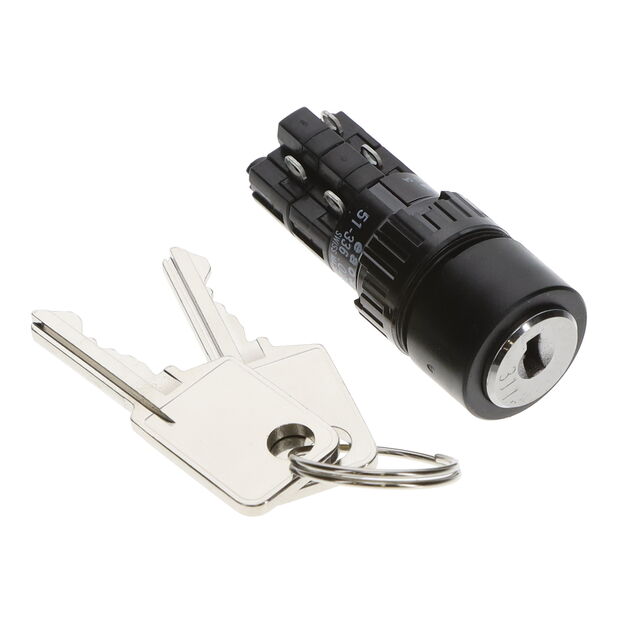

51-336.025D2F
ActiveEAO
ACTUATOR, 25 MM, 2 NC / 2 NO, R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
51-336.025D2F
ActiveEAO
ACTUATOR, 25 MM, 2 NC / 2 NO, R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 51-336.025D2F |
|---|---|
| Actuator Type | Flat Key |
| Angle of Throw | 90 ° |
| Circuit | 4PST-2NO/2NC |
| Contact Finish | Gold |
| Contact Material | Silver |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 5 A |
| Depth Behind Flange | 44.5 mm |
| Electrical Life | 50000 Cycles |
| Key Removable Positions | Right |
| Number of Positions | 2 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm |
| Switch Function | On-Off, Off-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 88.30 | |
| 10 | $ 83.10 | |||
| 25 | $ 80.51 | |||
| 50 | $ 75.31 | |||
| 100 | $ 71.16 | |||
Description
General part information
51-336.025D2F
Keylock Switch 2 Position 4PST-2NO/2NC 5A (AC) 250 VAC 24 VDC Panel Mount
