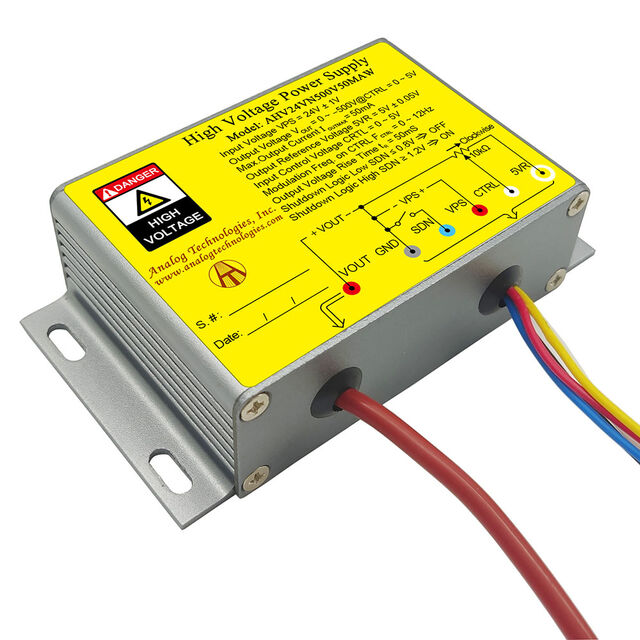

AHV24VN500V50MAW
ActiveAnalog Technologies, Inc.
HV 24V TO -500V 25W DC-DC CONVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AHV24VN500V50MAW
ActiveAnalog Technologies, Inc.
HV 24V TO -500V 25W DC-DC CONVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AHV24VN500V50MAW |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 50 mA |
| Efficiency | 70 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] [custom] | 55 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Power (Watts) | 25 W |
| Size / Dimension [x] | 104.4 mm |
| Size / Dimension [x] | 4.11 in |
| Size / Dimension [y] | 59.9 mm |
| Size / Dimension [y] | 2.36 " |
| Size / Dimension [z] | 27.9 mm |
| Size / Dimension [z] | 1.1 in |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 25 V |
| Voltage - Input (Min) [Min] | 23 V |
| Voltage - Output 1 [Max] | -500 V |
| Voltage - Output 1 [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 227.00 | |
| 10 | $ 217.00 | |||
| 50 | $ 207.00 | |||
| 100 | $ 197.00 | |||
Description
General part information
AHV24VN500V50MAW
Enclosed DC DC Converter 1 Output 0 ~ -500V 50mA 25V Input
Documents
Technical documentation and resources
