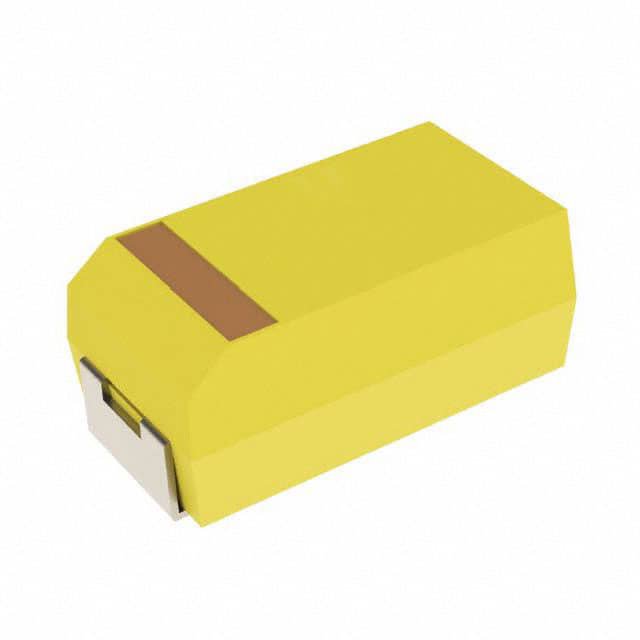

TCKIV474AT
ActiveCal-Chip Electronics, Inc.
CAP TANT 0.47UF 10% 1206
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TCKIV474AT
ActiveCal-Chip Electronics, Inc.
CAP TANT 0.47UF 10% 1206
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TCKIV474AT |
|---|---|
| Capacitance | 0.47 µF |
| ESR (Equivalent Series Resistance) | 12 Ohm |
| Features | General Purpose |
| Height - Seated (Max) [Max] | 0.071 " |
| Height - Seated (Max) [Max] | 1.8 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Manufacturer Size Code | A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.10 | |
| 4000 | $ 0.10 | |||
| 10000 | $ 0.09 | |||
| 14000 | $ 0.09 | |||
| 50000 | $ 0.08 | |||
| 100000 | $ 0.07 | |||
Description
General part information
TCKIV474AT
0.47 µF Molded Tantalum Capacitors 35 V 1206 (3216 Metric) 12Ohm
